M80-8691005

Overview

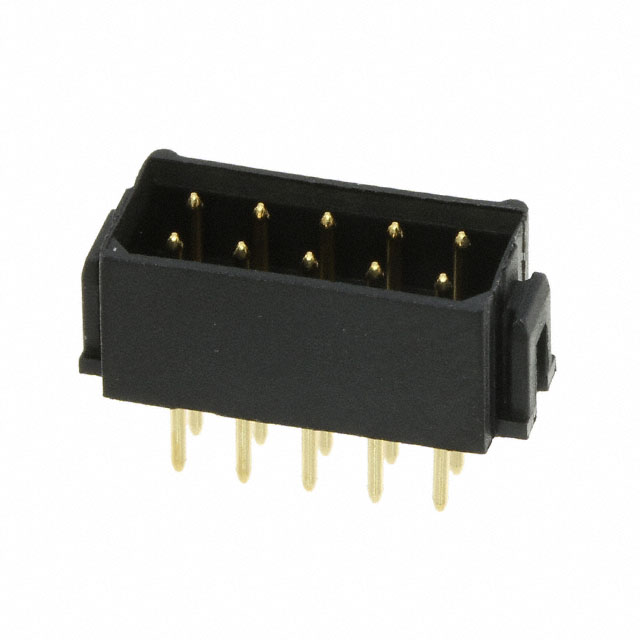

The Harwin M80-8691005 is a Datamate L-Tek header connector featuring a 10-position DIL male configuration with a 2.00mm pitch. It utilizes four-finger beryllium copper contacts with gold plating for high-reliability connections. Designed for vertical through-board mounting, this unlatched unit ensures connection integrity without loss.

Feature Summary

• Employs four-finger beryllium copper contact technology to ensure connection integrity without loss
• Features an unlatch mechanism for simplified assembly and maintenance operations
• Constructed with gold-plated contacts to provide reliable signal transmission

Applications

• High-reliability industrial equipment interconnections
• Data communication hardware assemblies
• Medical device circuit board connections

Procurement Notes

Verify the specific unlatched configuration and vertical orientation against system requirements. Confirm that the 2.00mm pitch aligns with mating receptacle specifications. Ensure the PCB footprint matches the DIL male pin layout for proper installation.

Selection Notes

Select this model when an unlatched, vertical through-board header is required. The Datamate L-Tek series offers robust mechanical stability. Verify compatibility with mating sockets in the same family to maintain consistent performance standards across the assembly.

Part Context

This component belongs to the Datamate L-Tek series by Harwin Inc., designed for demanding environments. The series emphasizes high reliability and durability through specialized contact engineering. It serves as a critical interconnect solution for compact electronic systems requiring secure board-to-board or wire-to-board links.

Replacement Considerations

Compatible substitutes within the Datamate L-Tek family include other unlatched male headers with identical 2.00mm pitch and 10-position configurations. Ensure the replacement maintains the vertical through-board mounting style and gold contact finish for equivalent electrical and mechanical performance.
