M80-8691222

Overview

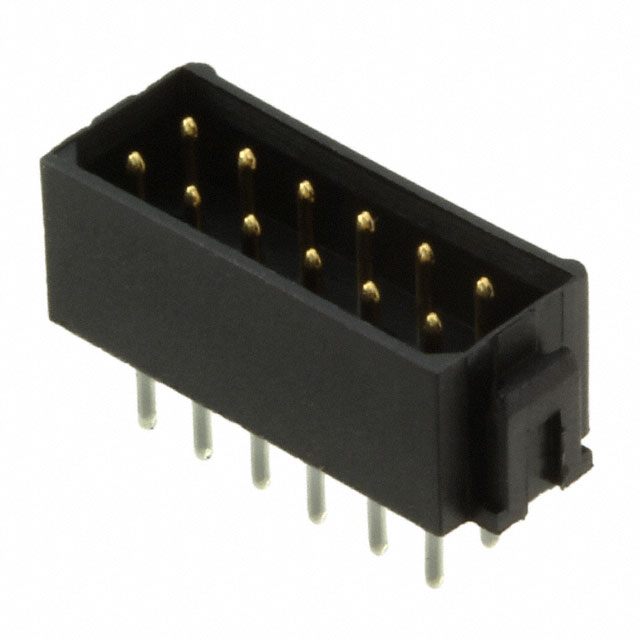

The M80-8691222 is a Datamate Mix-Tek series header connector manufactured by Harwin Inc. It features a 6-position, dual-in-line (DIL) configuration with male pin contacts. The connector utilizes a 2.00mm pitch and is designed for vertical through-hole mounting. Contact surfaces are gold-plated to ensure reliable signal transmission. The unit supports a current rating of 2.2A and a voltage rating of 800V. It employs high-reliability four-finger beryllium copper contact technology for secure mating.

Feature Summary

• Utilizes high-reliability four-finger beryllium copper contact technology to maintain connection integrity under vibration and shock.
• Features gold-plated male pins for durable electrical performance in dual-in-line configurations.
• Designed for vertical through-hole installation with a standard 2.00mm row spacing.

Applications

• Industrial control systems requiring robust connectivity
• Test and measurement equipment interfaces
• Harsh environment applications subject to mechanical stress

Procurement Notes

Verify the specific suffix codes against the official Harwin datasheet to confirm exact stacking heights and mating partner compatibility. Ensure that the selected variant matches the required current and voltage ratings for the target circuit. Cross-reference the part number with authorized distributors to confirm authenticity and avoid counterfeit components.

Selection Notes

Select this component when a compact, high-density interconnect solution is required for board-to-board or cable-to-board applications. Consider the 2.00mm pitch constraints and the need for through-hole termination. Evaluate the mated stacking height options provided in the technical documentation to ensure adequate clearance within the assembly enclosure.

Part Context

This component belongs to the Datamate Mix-Tek family, which is engineered for demanding environments. The series is characterized by its durability and ability to withstand repeated mating cycles without performance degradation. It serves as a critical interconnect element in systems where signal integrity and mechanical stability are paramount.

Replacement Considerations

Direct substitutes must match the 6-position DIL male format, 2.00mm pitch, and through-hole mounting style. Verify that any alternative maintains the same four-finger contact design and gold plating specifications to ensure equivalent electrical and mechanical performance.
