M80-8691422

Overview

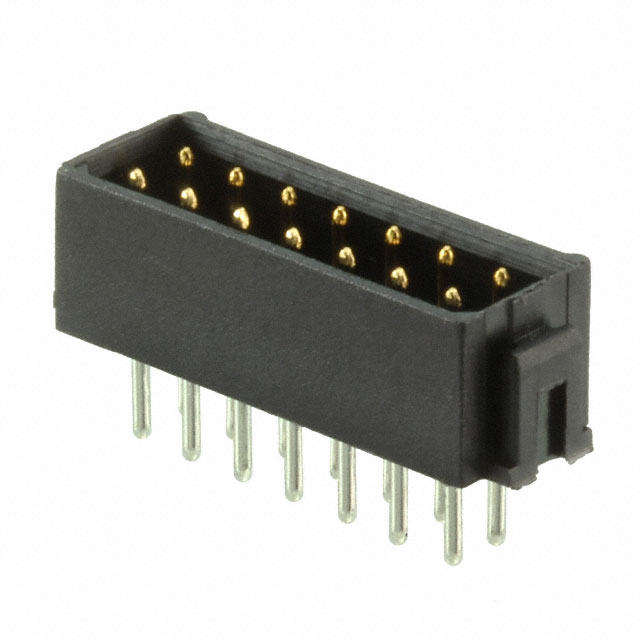

The Harwin M80-8691422 is a board connector from the Datamate L-Tek series, designed for vertical through-hole mounting. It features a dual in-line (DIL) male configuration with 14 positions arranged in a 7+7 layout. The connector utilizes phosphor bronze contacts with gold plating for mating surfaces and tin/lead termination finishes over a nickel barrier. Key physical dimensions include a body width of 0.235 inches, depth of 0.219 inches, and length of 0.691 inches. It offers polarized and shrouded design characteristics to ensure correct alignment during assembly.

Feature Summary

• Vertical DIL male header configuration for board-to-board or wire-to-board connections
• Polarized and shrouded housing design ensures precise mating alignment
• Gold-plated phosphor bronze contacts provide reliable electrical performance
• Tin/lead terminated pins with nickel barrier for secure PCB mounting

Applications

• Industrial control systems requiring robust interconnects
• Military and aerospace electronic assemblies
• High-end instrumentation and measurement devices
• Automotive electronics modules

Procurement Notes

Verify compliance requirements prior to procurement as this component is leaded and RoHS non-compliant. Confirm that the tin/lead termination finish aligns with your manufacturing processes and environmental regulations. Ensure the vertical orientation and specific pin count match your PCB footprint design. Check for any REACH restrictions relevant to your target market before finalizing orders.

Selection Notes

Select this part when a vertical, unshrouded-free male header is required for high-reliability applications. The 2mm pitch and 14-position count suit dense circuit layouts. Consider the leaded nature and operating temperature range against your system's thermal profile. Verify that the shrouded design meets your safety isolation needs compared to open-frame alternatives.

Part Context

This component belongs to the Datamate L-Tek family, known for four-finger beryllium copper contacts. The series is established for demanding industrial and Mil/Aero environments. The M80-8691422 specifically represents the vertical male variant within the broader Datamate ecosystem, offering distinct mechanical orientation compared to horizontal or right-angle counterparts.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
