Product Detailed Parameters
- Description：CONN HEADER VERT 16POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Plug
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：16
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Latch Holder
- Contact Length - Mating：-
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：-
- Insulation Height：0.219" (5.56mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin-Lead
- Contact Material：Phosphor Bronze
- Insulation Material：Polyester, Glass Filled
- Features：-
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：800V
Download product information
Overview

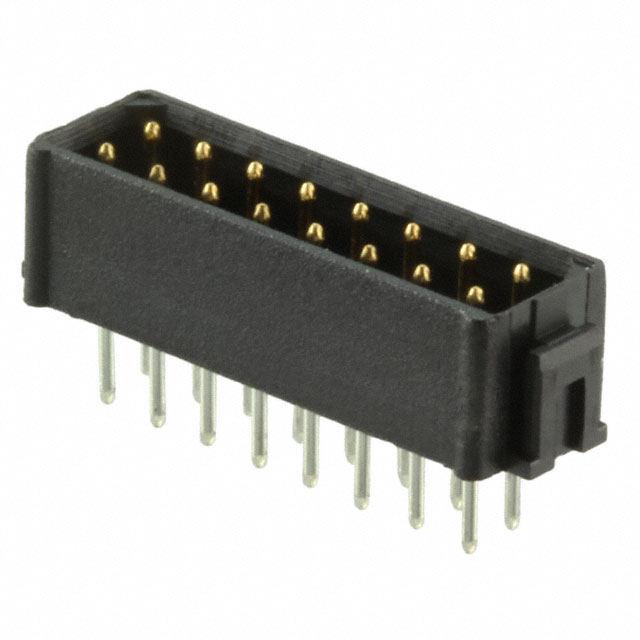

The M80-8691622 is a Datamate L-Tek male header connector manufactured by Harwin Inc. It features 16 positions arranged in a double row (8+8) with a 2.00mm pitch. Designed for through-hole mounting, it utilizes vertical orientation and tin-plated phosphor bronze contacts. The housing is constructed from black polyphenylene sulfide (PPS) without integrated latches.
Feature Summary
- Double-row male pin configuration for high-density interconnect applications
- Through-board termination with 3mm tail length for secure PCB mounting
- Latch-free housing design allowing for flexible mating strategies
Applications
- Industrial control system signal routing
- Consumer electronics board-to-board connections
- General-purpose electronic equipment interconnects
Procurement Notes
Verify the specific suffix requirements against the official Harwin datasheet to ensure compatibility with mating connectors. Confirm that the unlatched housing design aligns with the mechanical retention needs of the target assembly. Cross-reference the tin plating specification if environmental resistance differs from standard gold options.
Selection Notes
Select this component when a reliable, cost-effective male header is required for vertical through-hole applications. The unlatched design suits environments where external retention mechanisms are preferred or where frequent mating cycles do not demand integrated locking features. Ensure the 2.00mm pitch matches the existing board layout constraints.
Part Context
This part belongs to the Datamate L-Tek series, known for robust performance in demanding environments. The M80-8691622 specifically addresses needs for straight, unlatched male headers. Its construction supports stable electrical connections in general industrial and commercial sectors requiring durable interconnect solutions.
Replacement Considerations
- M80-8691625
FAQ
Does the M80-8691622 include integrated latching mechanisms?
No, the housing is designed without latches, relying on the mating connector or external means for retention.
What is the contact material and plating for this connector?
The contacts are made of phosphor bronze with a tin plating finish.
