M80-8691822

Overview

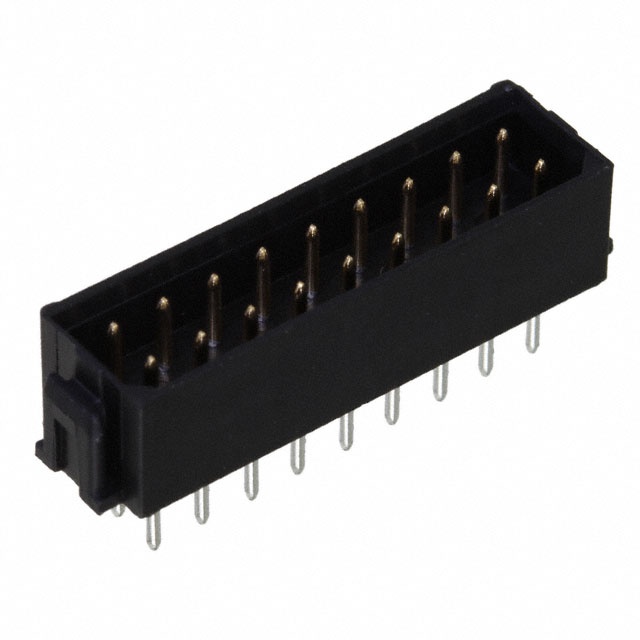

The M80-8691822 is a Datamate L-Tek series connector housing manufactured by Harwin Inc. It features a dual-in-line configuration with 9+9 positions, totaling 18 contacts. The connector utilizes a male pin contact type and is designed for vertical cable installation. It employs an unlatched locking mechanism and tin-plated contacts. The unit is rated for 120 V and constructed from polyester material.

Feature Summary

• Dual-in-line layout providing 18 total contact positions
• Vertical orientation suitable for cable mounting applications
• Unlatched design for simplified assembly processes
• Tin-plated contact surfaces for reliable conductivity

Applications

• Industrial control panel wiring
• Electronic equipment interconnects
• Cable harness assemblies

Procurement Notes

Verify the specific housing material and contact plating against project requirements before ordering. Confirm that the unlatched locking style aligns with the mechanical retention needs of the final assembly. Ensure compatibility with mating pins regarding current ratings and voltage specifications.

Selection Notes

Select this component when a vertical, unlatched connector housing is required for low-voltage applications. The polyester construction offers standard durability. Consider the 120V rating and tin plating suitability for the intended electrical environment. Verify pitch compatibility with mating components.

Part Context

This part belongs to the Datamate L-Tek family, which provides high-reliability interconnect solutions. The M80 series is characterized by its compact form factor and robust performance in demanding environments. This specific model represents a standard housing option within the broader connector ecosystem.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Evaluate other Datamate L-Tek housings with matching position counts and orientation if direct substitution is necessary.
