Product Detailed Parameters
- Description：CONN HEADER VERT 26POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Plug
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：26
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Latch Holder
- Contact Length - Mating：-
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：-
- Insulation Height：0.219" (5.56mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin-Lead
- Contact Material：Phosphor Bronze
- Insulation Material：Polyester, Glass Filled
- Features：-
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：800V
Download product information
Overview

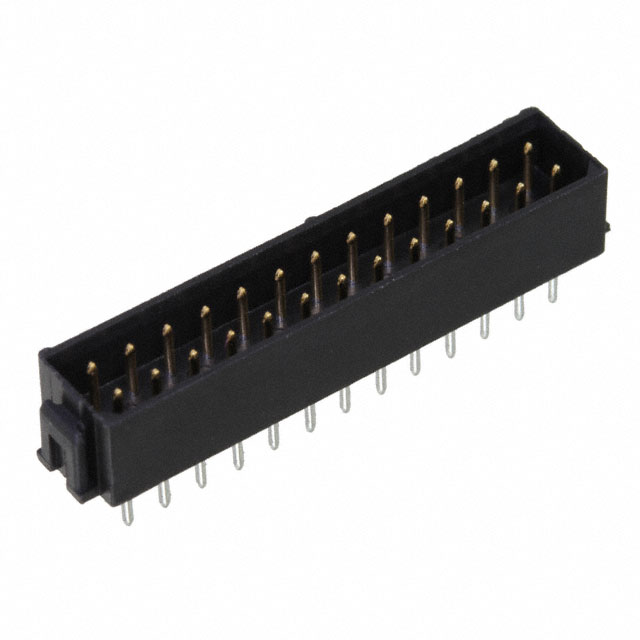

The M80-8692622 is a Datamate L-Tek male header connector manufactured by Harwin. It features a dual in-line (DIL) configuration with 13+13 positions, totaling 26 contacts. The connector utilizes a 2.00mm pitch and is designed for vertical through-hole mounting on printed circuit boards. Contact materials consist of phosphor bronze with gold plating over nickel at the interface, while termination surfaces are tin/lead coated. The housing is black polyphenylene sulfide (PPS), providing polarized and shrouded protection. It operates within a temperature range of -55°C to +125°C and supports up to 500 mating cycles.
Feature Summary
- Dual in-line male pin configuration with polarized and shrouded housing design
- Vertical through-hole solder termination for secure board attachment
- Gold-plated contact interfaces ensuring reliable signal transmission
- High-temperature resistant PPS plastic housing material
Applications
- Industrial control system interconnections
- Test and measurement equipment headers
- General-purpose board-to-board or cable connections
Procurement Notes
Verify component authenticity by checking manufacturer markings against official datasheets. Confirm RoHS compliance status as this specific part may contain lead based on available records. Ensure storage conditions maintain integrity of tin/lead terminations prior to assembly.
Selection Notes
Select this connector when a 26-position vertical male header is required. Verify that the mating counterpart matches the DIL format and polarity keys. Ensure PCB footprint aligns with the 2.00mm pitch specifications and through-hole drilling requirements.
Part Context
This component belongs to the Datamate L-Tek series, designed for high-density interconnect applications. It complements other connectors in the Harwin ecosystem, offering robust mechanical stability and electrical performance for demanding environments.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult Harwin engineering for compatible alternatives if this specific variant is unavailable.
FAQ
What is the contact material used in this connector?
The contacts are made of phosphor bronze with gold plating at the interface and tin/lead coating at the termination.
Is this connector polarized?
Yes, the M80-8692622 features a polarized and shrouded housing design to prevent incorrect mating.
