M80-8693422

Overview

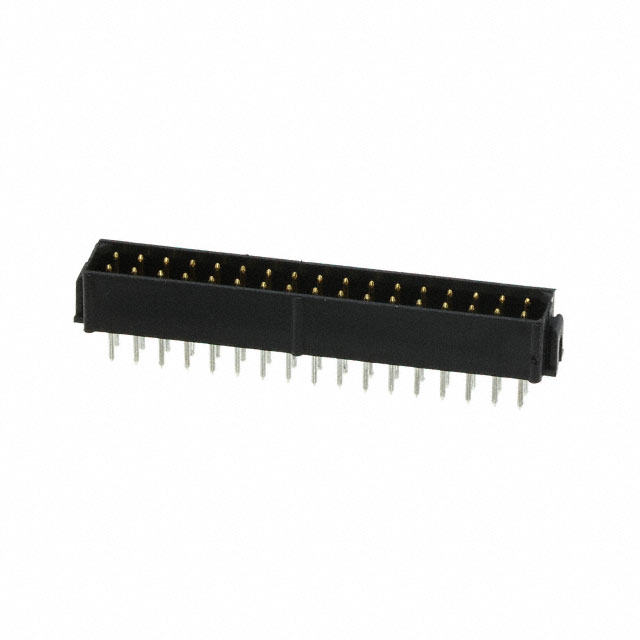

The Harwin M80-8693422 is a Datamate L-Tek male header connector featuring a 2 mm pitch and 34 positions arranged in a dual inline configuration. It utilizes four-finger beryllium copper contact technology for high reliability. The component is designed for vertical mounting with an unlatched housing structure. Tin plating is applied to the contacts, supporting connections in standard industrial environments.

Feature Summary

• Employs four-finger beryllium copper contact technology to ensure connection integrity without signal loss
• Features a dual inline male pin configuration with a 2 mm pitch for compact board integration
• Utilizes tin-plated contacts within an unlatched housing design for straightforward assembly

Applications

• Industrial control systems requiring reliable signal transmission
• General purpose electronic equipment utilizing Datamate interconnects
• Applications necessitating vertical male header connections on printed circuit boards

Procurement Notes

Verify the specific ordering suffix against official Harwin documentation to confirm the exact contact plating and housing latch configuration. Ensure compatibility with mating female sockets from the same Datamate L-Tek series. Confirm that the vertical orientation and unlatched design meet the mechanical constraints of the target enclosure. Cross-reference the 34-position count with system requirements before procurement.

Selection Notes

Select this component when a vertical male header with a 2 mm pitch is required for signal or low-power applications. The unlatched design suits applications where mechanical retention is provided by other means. Consider the tin plating for cost-effective solutions in non-corrosive environments. Verify that the dual inline layout fits the available PCB footprint and routing space.

Part Context

This part belongs to the Datamate L-Tek family, characterized by its robust construction and modular design. The series supports various configurations including mixed signal and power options. As a male header, it mates with corresponding female sockets to establish electrical pathways. The product line emphasizes high-reliability performance in demanding operational conditions.

Replacement Considerations

M80-8693425

FAQ

What contact material is used in this connector?

The connector uses beryllium copper contacts with a four-finger design to ensure reliable connection integrity.

Does this connector have a latching mechanism?

No, the M80-8693422 features an unlatched housing design.
