M80-8760222

Overview

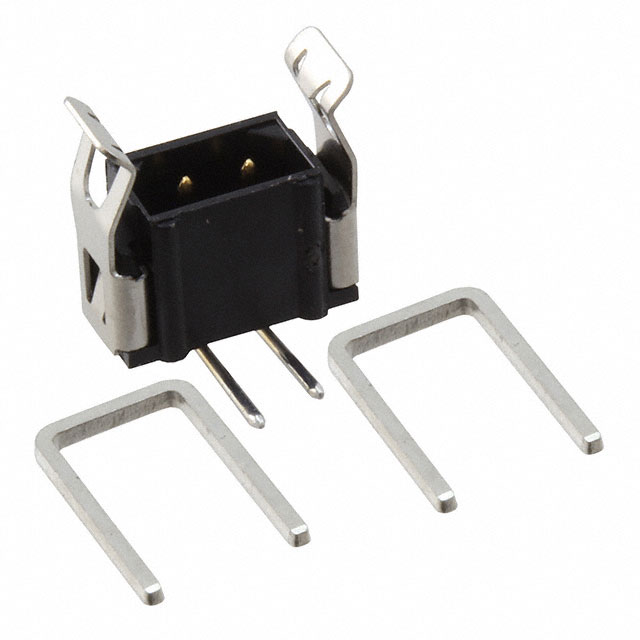

The M80-8760222 is a Datamate L-Tek male header connector manufactured by Harwin Inc. It features a single row with two positions and a 2.00mm pitch. Designed for through-hole mounting, it utilizes right-angle termination. The contacts are made of phosphor bronze with gold plating on the mating surface and tin-lead plating on the column. The housing is constructed from glass-reinforced polyester, rated UL94 V-0, and operates within a temperature range of -55°C to +125°C.

Feature Summary

• Single-row right-angle configuration for space-constrained board layouts
• Integrated locking latches requiring tooling for secure engagement
• Four-wall shielding design for enhanced signal integrity

Applications

• Embedded systems interconnects
• Automotive electronic modules
• Power supply unit connections

Procurement Notes

Verify the specific suffix codes against official Harwin documentation to confirm the exact termination style and latch mechanism. Ensure compatibility with mating sockets in the Datamate L-Tek series. Confirm that the required tooling for the locking latches is available for assembly processes. Cross-reference the pin count and pitch to prevent mismatched connections.

Selection Notes

Select this component when a low-profile, right-angle connection is required for two signals. The L-Tek series offers a cost-effective solution compared to the J-Tek line while maintaining robust mechanical performance. Consider the need for tooling-assisted locking if vibration resistance is critical. Evaluate the thermal limits to ensure operation within the specified -55°C to +125°C range.

Part Context

This part belongs to the Datamate L-Tek family, which provides economical rectangular connectors for general-purpose applications. Unlike the higher-performance J-Tek series, L-Tek focuses on standard density and reliable connectivity. The M80-8760222 specifically addresses needs for horizontal board-to-board or cable connections where vertical space is limited.

Replacement Considerations

Direct substitutes include other Harwin M80-876 variants with matching pin counts and angles. Verify that any alternative maintains the same 2.00mm pitch and right-angle orientation. Check if the locking mechanism type is compatible with existing assembly fixtures.
