Product Detailed Parameters
- Description：CONN HEADER R/A 3POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：3
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Latch Lock
- Contact Length - Mating：-
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：-
- Insulation Height：0.156" (3.96mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin-Lead
- Contact Material：Phosphor Bronze
- Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
- Features：Strain Relief Clips
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：120V
Download product information
Overview

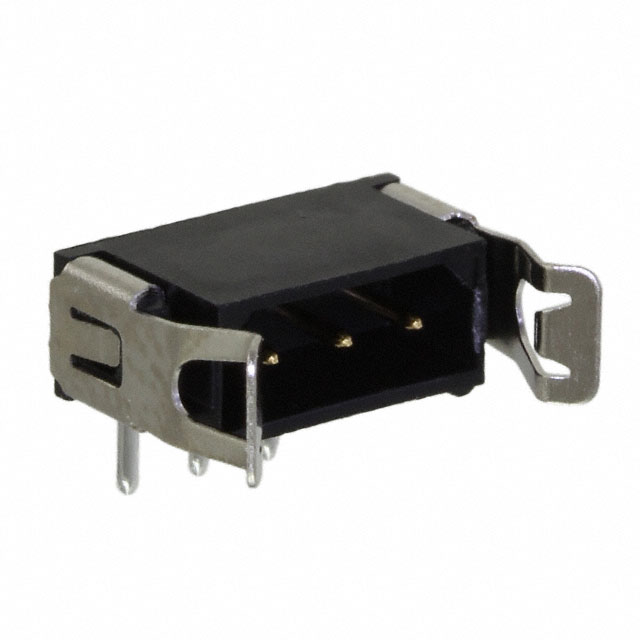

The M80-8760322 is a Datamate L-Tek male header connector manufactured by Harwin Inc. It features 3 positions with a single row and a 2.00mm (0.079 inch) pitch. Designed for through-hole mounting, this right-angle connector utilizes tin-plated phosphor bronze contacts rated for 120V. The housing is constructed from black polyphenylene sulfide (PPS), providing UL94 V-0 flammability rating. It includes a latching mechanism for secure mating.
Feature Summary
- Datamate L-Tek series design with integrated latching mechanism
- Right-angle through-hole termination for space-constrained layouts
- Tin-plated contacts ensuring reliable signal transmission
- Polyphenylene sulfide housing for thermal stability
Applications
- Industrial control system interconnects
- Consumer electronics board-to-board connections
- Automotive electronic module interfaces
- Telecommunications equipment wiring
Procurement Notes
Verify the specific ordering suffix to confirm contact finish and latch configuration. Ensure compatibility with mating receptacles from the same Datamate L-Tek family. Confirm that the right-angle orientation meets the mechanical clearance requirements of the target assembly before finalizing procurement orders.
Selection Notes
Select this component when a low-profile, right-angle male header is required for through-hole PCB assembly. The 3-position count suits compact signal routing needs. Verify that the 120V rating aligns with the circuit voltage requirements and that the tin plating is suitable for the intended environmental conditions.
Part Context
This part belongs to the Harwin Datamate L-Tek family, known for its robust locking mechanism and high reliability in harsh environments. The L-Tek variant specifically offers a latched connection, distinguishing it from the unlatched Mix-Tek or J-Tek series within the broader Datamate product line.
Replacement Considerations
Direct substitutes must match the 3-position count, 2.00mm pitch, right-angle form factor, and through-hole termination. Verify that any alternative maintains the same latching style and contact material specifications to ensure mechanical and electrical interchangeability.
