M80-8760522

Overview

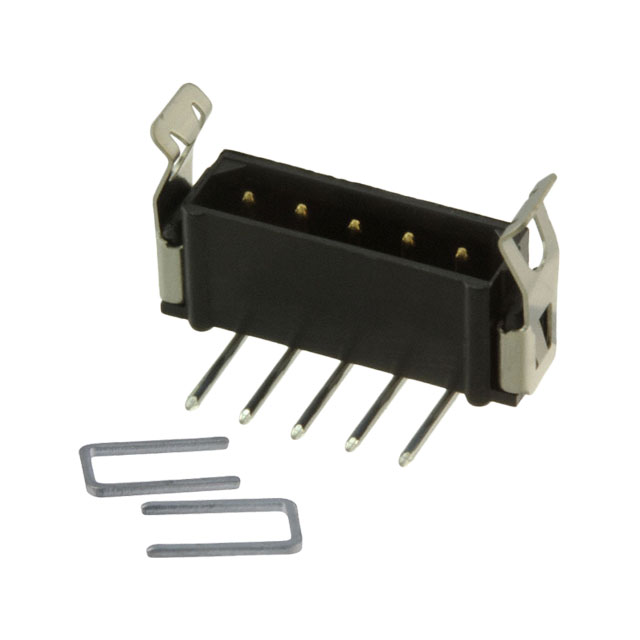

The M80-8760522 is a Datamate L-Tek connector header manufactured by Harwin Inc. It features a 5-position configuration with a 0.079-inch (2.00mm) pitch. Designed for through-hole mounting, this right-angle male pin header utilizes polyester housing material and tin-plated contacts. The component operates within a voltage rating of 120V and incorporates a latched design to secure connections.

Feature Summary

• High-reliability four-finger beryllium copper contact technology ensures connection integrity without signal loss.
• Datamate L-Tek series design provides a robust latching mechanism for secure mating.

Applications

• General electronic interconnects requiring high reliability
• Right-angle board-to-wire or board-to-board connections
• Applications demanding secure latched connector systems

Procurement Notes

Verify the specific manufacturer datasheet for complete environmental ratings and mechanical dimensions. Confirm that the tin plating and polyester housing align with your thermal and chemical resistance requirements. Ensure the right-angle orientation fits your PCB layout constraints before finalizing procurement.

Selection Notes

Select this model when a right-angle, latched male header is required for low-voltage applications. The Datamate L-Tek series offers distinct advantages in vibration resistance due to its locking feature. Consider the 2.00mm pitch and 5-position count to match your circuit density needs.

Part Context

This component belongs to the Datamate L-Tek family from Harwin Inc., known for compact, high-density interconnect solutions. The L-Tek series specifically emphasizes durability and secure locking mechanisms, distinguishing it from standard unlatched headers in the broader connector market.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with mating sockets from the same Datamate L-Tek series if cross-referencing is necessary.
