M80-8760622

Overview

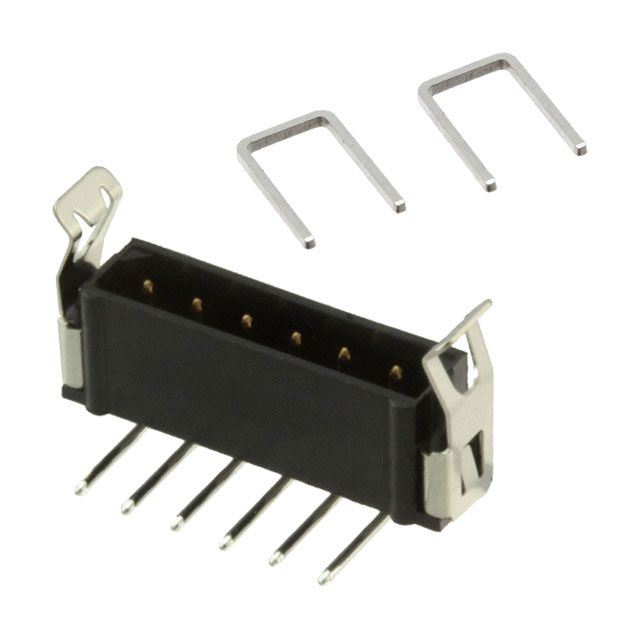

The M80-8760622 is a Datamate J-Tek series header connector manufactured by Harwin Inc. It features a vertical right-angle through-hole mounting style with six positions arranged in a single row. The contact pitch is 2.00 mm (0.079 inches). The contacts are male pins made of phosphor bronze with tin plating. The housing is constructed from black polyphenylene sulfide (PPS) material, rated UL94 V-0 for flammability. This component is designed for board-to-board or cable applications.

Feature Summary

• Utilizes high-reliability four-finger beryllium copper contact technology to ensure connection integrity without signal loss.
• Features a shrouded design with keying options to prevent misalignment during mating.
• Employs a friction latch mechanism for secure retention between header and socket assemblies.

Applications

• Board-to-board interconnections in compact electronic modules
• Cable-to-board connections requiring right-angle routing
• Industrial control systems demanding high-reliability signal transmission

Procurement Notes

Verify the specific suffix code against the official Harwin datasheet to confirm plating type and latch configuration. Ensure compatibility with mating sockets from the same Datamate family. Confirm RoHS compliance status if required for your assembly process. Check current lifecycle status as distribution availability may vary.

Selection Notes

Select this part when a right-angle, single-row, six-position header is required with a 2mm pitch. The tin-plated contacts offer cost-effective conductivity suitable for general signal applications. The PPS housing provides thermal stability up to specified operating temperatures. Consider the friction latch requirement versus unlatched variants based on mechanical retention needs.

Part Context

This component belongs to the Datamate J-Tek family, known for high-density interconnects. It complements other Harwin connectors like the M80-5T10642MC in system designs requiring mixed orientation headers. The series supports various pin counts and termination styles for flexible PCB layout strategies.

Replacement Considerations

M80-8520642 is listed as a potential replacement variant within the Datamate L-Tek series. Verify mechanical dimensions and electrical ratings before substitution. Ensure mating compatibility with existing socket components in the assembly.
