M80-8770322

Overview

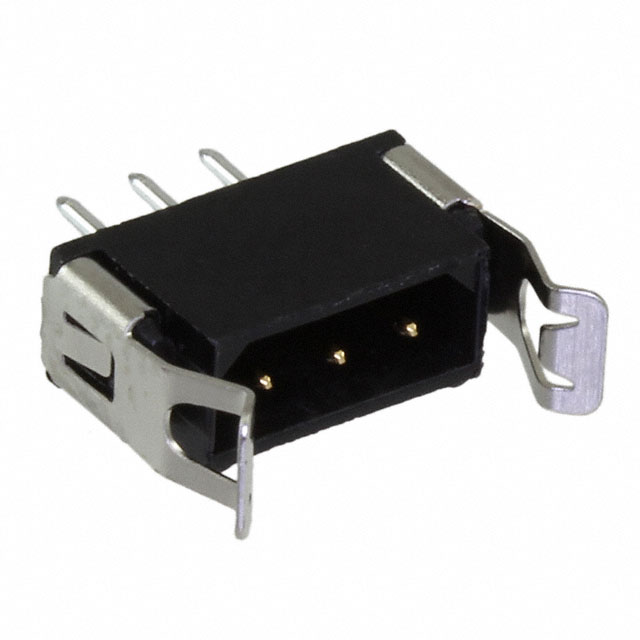

The Harwin M80-8770322 is a Datamate L-Tek series male header connector designed for vertical through-hole board mounting. It features a 3-position configuration with a 2.00mm (0.079 inch) pitch. The contacts are tin-plated to ensure reliable conductivity and corrosion resistance. This component utilizes a friction latch mechanism for secure mating engagement. It is classified as a wire-to-board or board-to-wire interconnection solution within the power connector category.

Feature Summary

• Vertical through-hole mounting style for direct PCB integration
• Integrated friction latch mechanism for secure connection retention
• Tin-plated male pin contacts for signal integrity
• Shrouded design to guide mating connectors

Applications

• Wire-to-board interconnections in industrial equipment
• Board-to-wire linking in consumer electronics assemblies
• Signal distribution in compact electronic modules

Procurement Notes

Verify the specific contact plating material and current rating requirements against the official datasheet before procurement. Confirm that the vertical orientation and shrouded design align with the mechanical constraints of the target assembly. Ensure compatibility with the mating socket counterpart within the Datamate L-Tek family to guarantee proper latch engagement and electrical performance.

Selection Notes

Select this part when a low-profile, vertically oriented male header is required for three-wire connections. The 2.00mm pitch suits applications needing dense wiring without excessive board space consumption. The friction latch feature is critical for applications requiring vibration resistance during operation. Consider the tin plating for general-purpose use rather than high-corrosion environments.

Part Context

This component belongs to the Harwin Datamate L-Tek family, which offers versatile interconnection solutions. The L-Tek series is characterized by its small form factor and robust mechanical latching systems. It serves as a standard interface for connecting flexible cables or rigid wires to printed circuit boards in space-constrained designs.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
