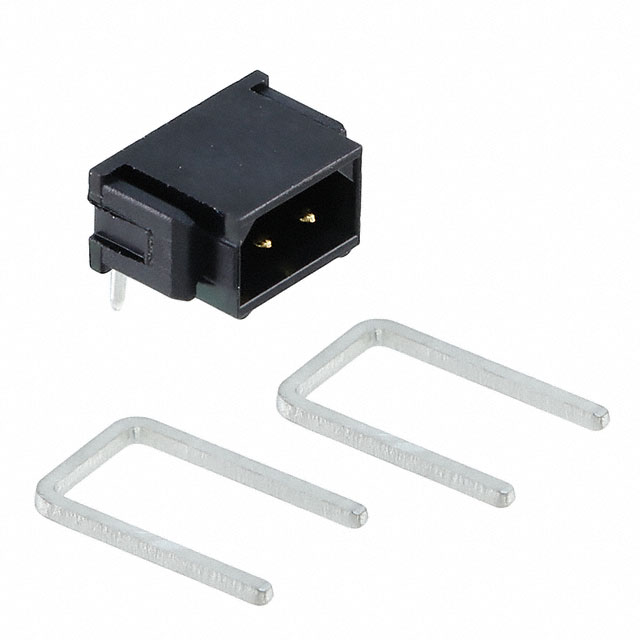

M80-8780222

$1.93

Description：CONN HEADER R/A 2POS 2MM
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:605ca140b6fa Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER R/A 2POS 2MM
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：2
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Latch Holder
Contact Length - Mating：-
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：-
Insulation Height：0.156" (3.96mm)
Contact Shape：Circular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：29.5µin (0.75µm)
Contact Finish - Post：Tin-Lead
Contact Material：Phosphor Bronze
Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
Features：Strain Relief Clips
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：2.2A
Voltage Rating：120V

Download product information

M80-8780222

Overview

The M80-8780222 is a Datamate L-Tek connector header manufactured by Harwin Inc. It features a 2-position configuration with male pin contacts. The component utilizes a 2.00mm (0.079 inch) pitch and is designed for right-angle surface mounting. Contacts are tin-plated phosphor bronze, suitable for general signal applications. The housing is black polyphenylene sulfide (PPS), rated UL94 V-0. This unshrouded, unlatched single-in-line design supports through-hole termination.

Feature Summary

Right-angle orientation facilitates compact board layout integration.
Unlatched design allows for flexible mating without mechanical locking constraints.
Tin plating provides reliable conductivity for standard signal transmission.

Applications

General electronic interconnects requiring low-profile connections
Control panel wiring harnesses
Industrial equipment signal routing

Procurement Notes

Verify the specific suffix '22' confirms tin plating and right-angle orientation against the official datasheet. Ensure compatibility with mating female sockets from the same Datamate L-Tek series. Confirm that the unlatched design meets the mechanical retention requirements of the target assembly environment.

Selection Notes

Select this part when a right-angle, low-cost interconnect solution is required. The unlatched feature distinguishes it from latched variants in the M80-878 series. Verify that the 2-position count matches the circuit design needs. Consider the tin plating limitations compared to gold-plated options for high-cycle applications.

Part Context

This component belongs to the Harwin Datamate L-Tek family, characterized by its robust construction and cost-effective design. The M80-878 prefix indicates a right-angle header variant. It complements the broader M80 ecosystem, offering diverse mounting styles and contact configurations for various industrial and commercial electronics applications.
