M80-8780722

Overview

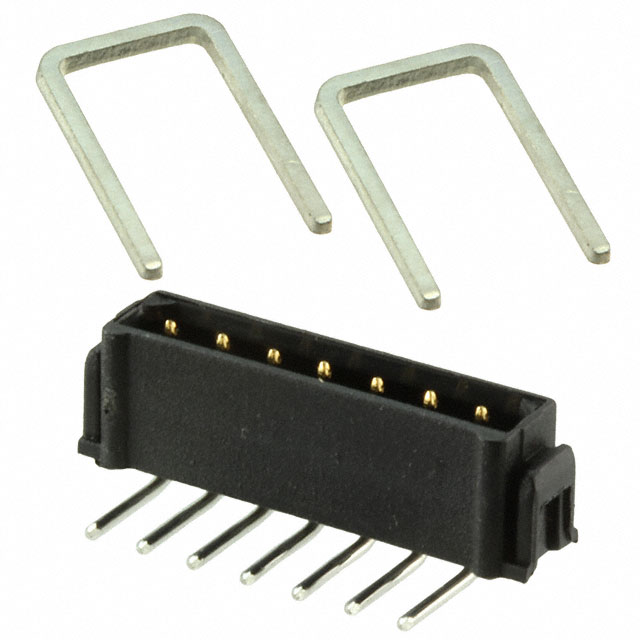

The Harwin M80-8780722 is a Datamate L-Tek series header featuring 7 positions with a 2 mm pitch. It utilizes single-row, shrouded male pin contacts with tin plating for reliable signal transmission. Designed for through-hole mounting, this right-angle connector supports an operating temperature range from -55°C to +125°C. The component employs a solder pin termination method and includes an unlatched design for straightforward assembly.

Feature Summary

• Right-angle board-to-board or cable connection capability
• Shrouded housing structure for alignment protection
• Unlatched mechanical configuration for easy mating

Applications

• Compact electronic device interconnects
• Board-to-board signal routing
• Cable harness connections

Procurement Notes

Verify RoHS compliance status and REACH SVHC details directly with the manufacturer prior to procurement, as indicated in official documentation. Confirm that the specific tin-plated variant matches the application requirements. Ensure the unlatched design aligns with the mechanical constraints of the target assembly environment.

Selection Notes

Select this component when a low-profile, right-angle solution is required for dense circuit layouts. The 2 mm pitch allows for high-density arrangements while maintaining adequate spacing. Consider the unlatched feature if frequent disconnection or simple insertion is preferred over secure locking mechanisms in the final product design.

Part Context

This part belongs to the Datamate L-Tek family, which provides versatile rectangular connector solutions. The M80-8780722 specifically addresses needs for right-angle mounting in space-constrained environments. Its single-row configuration simplifies routing compared to multi-row alternatives while maintaining robust electrical performance standards.

Replacement Considerations

M80-8430742 is listed as a related alternative within the same product line.
