M80-8790322

Overview

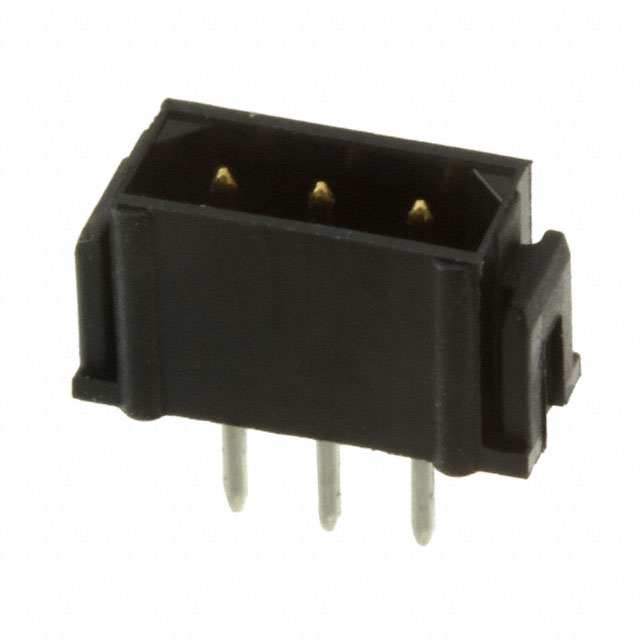

The M80-8790322 is a Datamate L-Tek header connector manufactured by Harwin Inc. It features a vertical through-hole mounting style with three positions in a single row. The connector utilizes male pins with a 2mm pitch and tin-plated contacts. Designed for board-to-board or cable applications, it includes an unlatched housing configuration.

Feature Summary

• Vertical pin orientation for standard PCB integration
• Single-row layout with three contact positions
• Unlatched housing design for flexible assembly

Applications

• Board-to-board interconnections
• Cable-to-board connections
• General electronic signal routing

Procurement Notes

Verify the specific datasheet version to confirm RoHS compliance status and material specifications. Ensure compatibility with mating connectors from the Datamate L-Tek series. Confirm that the unlatched housing meets the mechanical retention requirements of the target application environment.

Selection Notes

Select this component when a low-profile, vertical header is required for three-wire connections. The unlatched design suits applications where external locking mechanisms are not needed. Verify that the tin plating provides sufficient corrosion resistance for the operating environment.

Part Context

This part belongs to the Datamate L-Tek family, which offers compact rectangular connectors. The L-Tek series is characterized by its small form factor and high density capabilities compared to other Harwin connector lines.

Replacement Considerations

Compatible substitutes include other Harwin Datamate L-Tek headers with identical 3-position, vertical, and unlatched specifications.
