M80-8790522

Overview

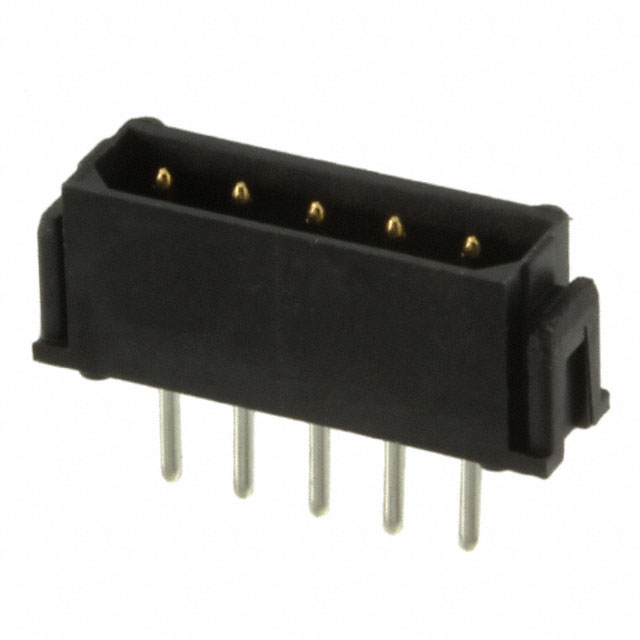

The M80-8790522 is a Datamate L-Tek pin header connector manufactured by Harwin Inc. It features a 2 mm pitch with 5 positions in a single row configuration. Designed for through-hole straight mounting, this component utilizes gold-plated phosphor bronze contacts and PPS insulation. The connector supports board-to-board or wire-to-board applications within an operating temperature range of -55°C to +125°C.

Feature Summary

• Straight through-hole mounting style for reliable PCB integration
• Gold-plated phosphor bronze contacts ensure stable signal transmission
• Polyphenylene sulfide insulation provides high thermal stability

Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic circuit assembly

Procurement Notes

Verify the specific part number against official Harwin documentation to confirm current availability status and lead times. Ensure that the ordering suffix matches the required contact plating thickness and housing color specifications. Cross-reference with authorized distributors to validate authenticity and prevent counterfeit components.

Selection Notes

Select this connector when a low-profile, single-row header is required for space-constrained designs. Consider the 2 mm pitch and straight orientation for standard PCB layouts. Evaluate the current carrying capacity and voltage ratings against system requirements before finalizing the design.

Part Context

This component belongs to the Datamate L-Tek series, known for its compact size and robust mechanical locking. The series offers various configurations including right-angle and surface-mount options. This specific model represents a standard through-hole variant suitable for general-purpose industrial and consumer electronics.

Replacement Considerations

Compatible mating sockets include models from the same Datamate L-Tek series with matching 2 mm pitch and 5-position count. Verify compatibility with alternative suppliers offering equivalent rectangular connectors.
