Product Detailed Parameters

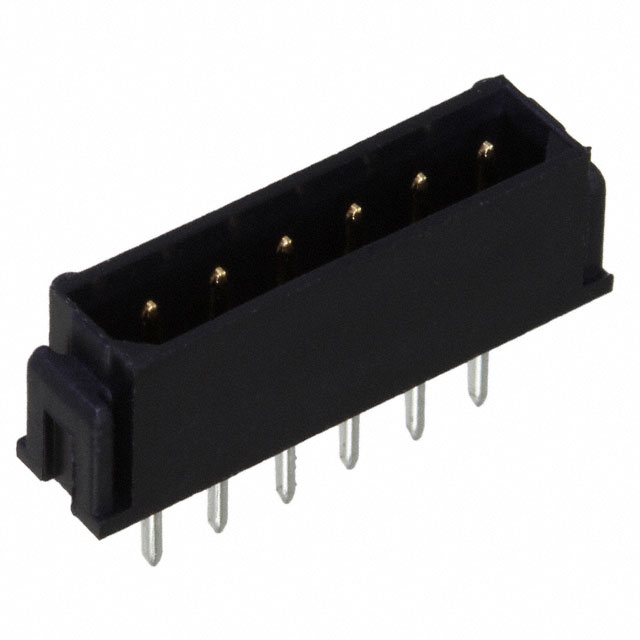

- Description：CONN HEADER VERT 6POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：6
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Latch Holder
- Contact Length - Mating：-
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：-
- Insulation Height：0.219" (5.56mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin-Lead
- Contact Material：Phosphor Bronze
- Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
- Features：-
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：800V
Download product information
Overview
The M80-8790622 is a Datamate L-Tek header connector manufactured by Harwin Inc. It features a 6-position, single-row configuration with a 2.00mm (0.079 inch) mating pitch. Designed for surface-mount installation, the component utilizes friction latch locking and solder pin termination. The contacts are made of phosphor bronze with tin plating. Rated for 800V and 2.2A, it operates within a temperature range of -55°C to 125°C. The housing is constructed from black PPS material reinforced with glass fiber, meeting UL94 V-0 flammability standards.
Feature Summary
- Datamate L-Tek series design providing robust board-to-board or cable interconnects
- Surface-mount construction with friction latch mechanism for secure attachment
- Four-wall shielding integrated into the housing structure
Applications
- Board-to-board interconnections in electronic assemblies
- Cable-to-board connections requiring surface-mount compatibility
- Industrial control systems operating within specified thermal limits
Procurement Notes
Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status as indicated in official documentation, noting potential variations based on production batches. Ensure storage conditions adhere to moisture sensitivity level requirements to maintain solderability and performance integrity prior to assembly.
Selection Notes
Select this component when a low-profile, surface-mount header with four-wall shielding is required. The 2.00mm pitch suits dense circuit layouts. Verify that the mating counterpart matches the Datamate L-Tek system specifications. Consider the unlatched design if space constraints preclude standard latching mechanisms.
Part Context
This part belongs to the Datamate L-Tek family, known for high-density interconnect solutions. The M80-879 prefix denotes a male header variant. Specific suffixes define row count, position, and mounting style. This model represents a specialized surface-mount option within the broader connector ecosystem.
Replacement Considerations
M80-8790642 serves as a verified alternative within the same series. Both share identical electrical ratings and physical dimensions. Cross-reference mating connectors to ensure mechanical compatibility before substitution.
