Product Detailed Parameters
- Description：CONN HEADER VERT 6POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：6
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Friction Lock
- Contact Length - Mating：-
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：-
- Insulation Height：0.219" (5.56mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin
- Contact Material：Phosphor Bronze
- Insulation Material：Polyamide (PA46), Nylon 4/6, Glass Filled
- Features：-
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：800V
Download product information
Overview

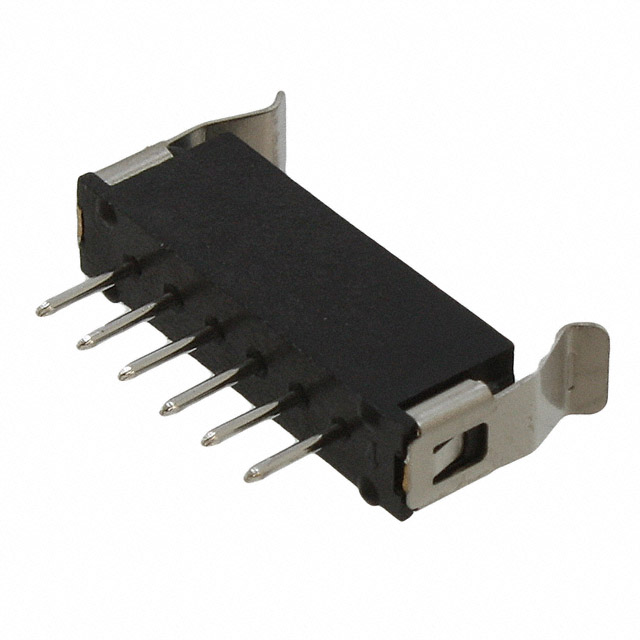

The M80-8810642 is a power-to-board connector from the Datamate L-Tek series, manufactured by Harwin. It features a vertical male header with 6 positions and a 2mm pitch. The connector utilizes a friction latch mechanism for secure mating. Contact plating is tin on the tail and gold on the interface. It is designed for through-hole termination and supports board-to-board or wire-to-board applications. The unit operates within a temperature range of -55°C to +125°C and holds a voltage rating of 120V.
Feature Summary
- Vertical male header configuration with integrated friction latch
- Tin-plated tails for reliable soldering and gold-plated contacts for signal integrity
- Robust PPS housing material ensuring stability in demanding environments
Applications
- Industrial control systems requiring robust power connections
- Telecommunications equipment with high-density interconnect needs
- Automotive electronics utilizing board-to-board linking
Procurement Notes
Verify component status as this part may be discontinued or subject to limited supply. Confirm exact pin count and orientation against design requirements. Check for compatible mating sockets within the same Datamate L-Tek family. Ensure PCB footprint matches the specified through-hole dimensions. Validate environmental ratings against operational conditions before finalizing procurement.
Selection Notes
Select this connector when a vertical, latched power connection is required. Consider the 2mm pitch for spacing constraints. Evaluate the friction latch mechanism against vibration requirements. Compare current ratings and voltage limits with system specifications. Assess thermal performance within the specified operating temperature range.
Part Context
This component belongs to the Datamate L-Tek series, known for high reliability in harsh environments. The series offers various configurations including straight and right-angle headers. It is widely used in industrial and automotive sectors. The M80-8810642 specifically provides a compact solution for power distribution.
Replacement Considerations
M80-8520642 is listed as a potential replacement option. Verify mechanical compatibility and electrical specifications before substitution. Ensure the alternative part meets all original design requirements.
