M80-8810742

Overview

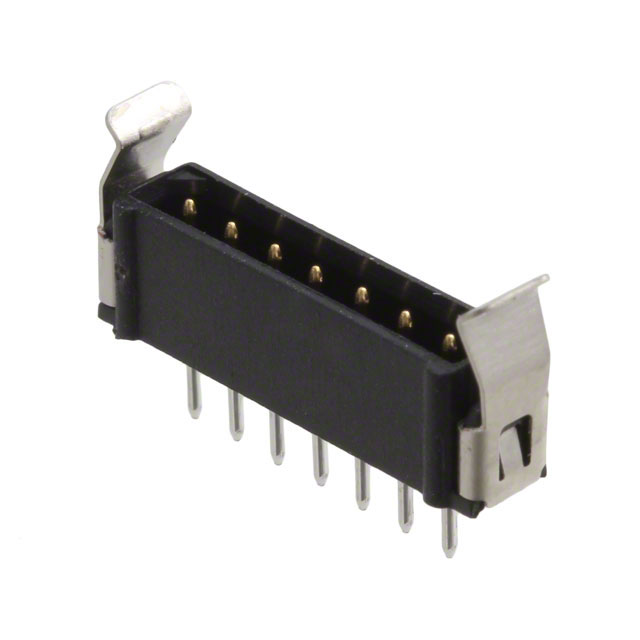

The M80-8810742 is a 7-position vertical male board connector from the Datamate L-Tek series by Harwin Inc. It features a 2.54 mm pitch and is designed for surface mount or through-hole applications with a friction latch mechanism. The contacts are made of phosphor bronze with gold plating, while the termination pins are tin-plated over nickel barriers. The housing is black, and the component operates within a temperature range of -55°C to +125°C.

Feature Summary

• Friction latch design for secure mating
• Vertical male contact configuration
• Gold-plated phosphor bronze contacts
• Tin-plated termination pins

Applications

• Industrial control systems
• Medical equipment
• Test and measurement devices

Procurement Notes

Verify the specific datasheet version for the M80-8810742 to confirm current RoHS compliance status and exact pin dimensions. Ensure that the friction latch mechanism aligns with the mechanical constraints of the target assembly. Cross-reference the termination style with PCB layout requirements before finalizing procurement orders.

Selection Notes

Select this component when a vertical male connector with a latching feature is required. The 7-position count suits moderate density interconnect needs. Consider the gold contact plating for reliable signal transmission in low-voltage applications. Verify compatibility with corresponding female receptacles in the same series.

Part Context

This part belongs to the Datamate L-Tek family, known for rugged interconnect solutions. It complements female connectors in the same series to form complete mating pairs. The design supports high reliability in demanding environments, fitting into Harwin's portfolio of durable electronic components.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific model. Evaluate other Datamate L-Tek variants only if they match the position count, pitch, and latching mechanism exactly.
