M80-8820245

Overview

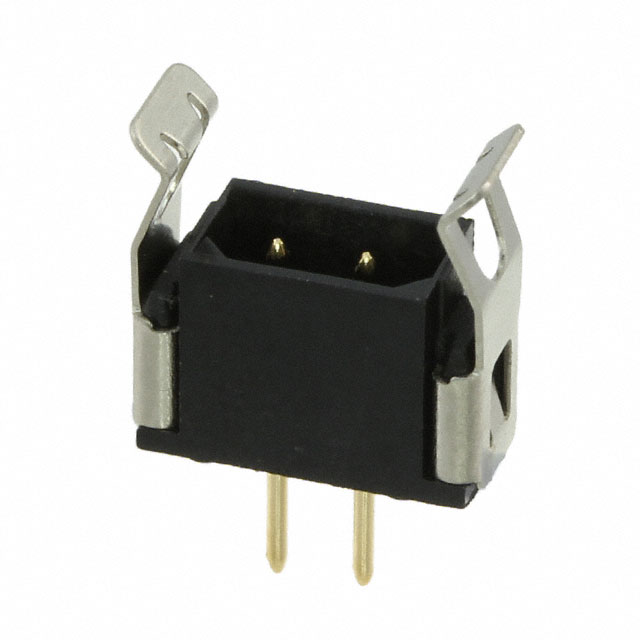

The M80-8820245 is a Datamate L-Tek vertical PCB header manufactured by Harwin Inc. It features a 2-position configuration with a 2.00mm pitch and single row layout. Designed for through-hole mounting, the connector utilizes phosphor bronze contacts with gold plating to ensure reliable signal transmission. The housing is constructed from Polyphenylene Sulfide (PPS), providing thermal stability within an operating temperature range of -55°C to +125°C. Rated for 3A current and 120V voltage, this straight-mount component supports board-to-board and wire-to-board interconnections.

Feature Summary

• Vertical through-hole mounting design for space-efficient PCB integration
• High mechanical reliability with shock, bump, and vibration resistance
• Gold-plated phosphor bronze contacts for durable electrical performance

Applications

• Industrial control systems requiring robust interconnects
• Automotive electronics operating in extreme temperatures
• Medical devices demanding high reliability and compact form factors

Procurement Notes

Verify the specific suffix code against official datasheets to confirm orientation and latch type. Ensure compatibility with mating connectors within the Datamate L-Tek series. Confirm that the required current and voltage ratings align with system specifications before procurement.

Selection Notes

Select this model for applications requiring vertical board-to-board connections with limited height clearance. Consider the 2mm pitch and 2-position count for circuit density requirements. Verify that the PPS housing material meets environmental standards for the intended deployment location.

Part Context

This component belongs to the Datamate L-Tek series, known for high-reliability interconnect solutions. It complements other Harwin connectors by offering vertical mounting options suitable for dense PCB layouts. The series is widely used in sectors requiring stringent performance under harsh conditions.

Replacement Considerations

M80-8820242 is a confirmed substitute part number within the same series offering equivalent electrical and mechanical properties.
