Product Detailed Parameters
- Description：CONN HEADER VERT 3POS 2MM
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.079" (2.00mm)
- Number of Positions：3
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Latch Lock
- Contact Length - Mating：-
- Contact Length - Post：0.118" (3.00mm)
- Overall Contact Length：-
- Insulation Height：0.219" (5.56mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：29.5µin (0.75µm)
- Contact Finish - Post：Tin
- Contact Material：Phosphor Bronze
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：-
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：2.2A
- Voltage Rating：800V
Download product information
Overview

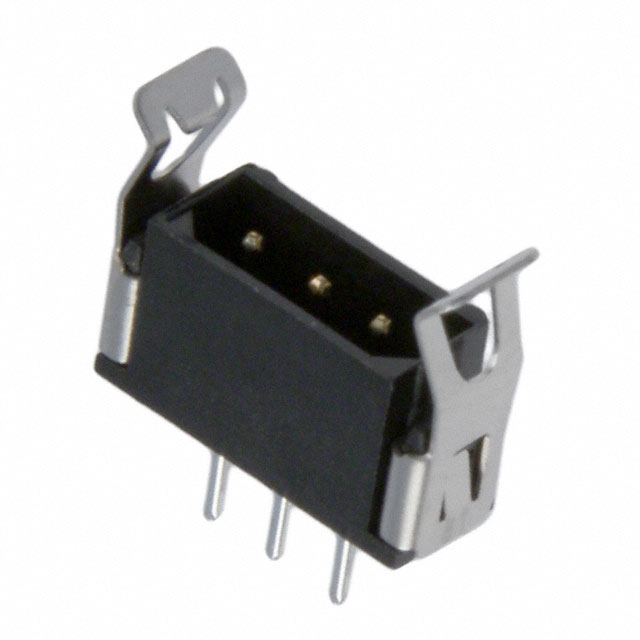

The Harwin M80-8820342 is a Datamate L-Tek single-row male plug connector designed for vertical through-board mounting. It features three contacts with a 2 mm pitch and supports mixed signal and power interconnections. The connector utilizes four-finger beryllium copper contact technology with gold plating for high reliability. Rated for 3 A current and 120 V, it operates within a temperature range of -55 °C to +125 °C. The housing is constructed from PPS material, and the unit includes locking latches requiring tooling for engagement.
Feature Summary
- Four-finger beryllium copper contact technology ensures connection integrity without loss
- Selective gold plating on contact surfaces provides reliable conductivity
- Integrated locking latches require specific tooling for secure engagement
- Vertical straight orientation facilitates through-board PCB installation
Applications
- Industrial control systems requiring mixed signal and power connections
- Aerospace equipment demanding high-reliability interconnects
- Board-to-board and wire-to-board mating configurations
Procurement Notes
Verify the exact part number against official Harwin documentation to confirm specifications. Ensure compatibility with required tooling for latch engagement. Check environmental ratings against application requirements. Confirm housing material and contact plating details match design needs. Validate current and voltage ratings for the intended circuit.
Selection Notes
Select this component when vertical mounting and high-reliability connections are required. Consider the need for specific latching tools during assembly. Evaluate space constraints regarding the 2 mm pitch and single-row configuration. Assess thermal operating ranges against environmental conditions. Verify mating connector compatibility within the Datamate L-Tek series.
Part Context
This connector belongs to the Datamate L-Tek series, known for high-reliability performance in demanding environments. The M80 series offers robust mechanical and electrical characteristics suitable for industrial and aerospace applications. It provides a compact solution for mixed signal and power interconnections with verified durability standards.
Replacement Considerations
Consult official Harwin documentation for confirmed substitute part numbers. Verify pin count, pitch, and mounting orientation compatibility. Ensure mating connector interface alignment before substitution.
