M80-8820642

Overview

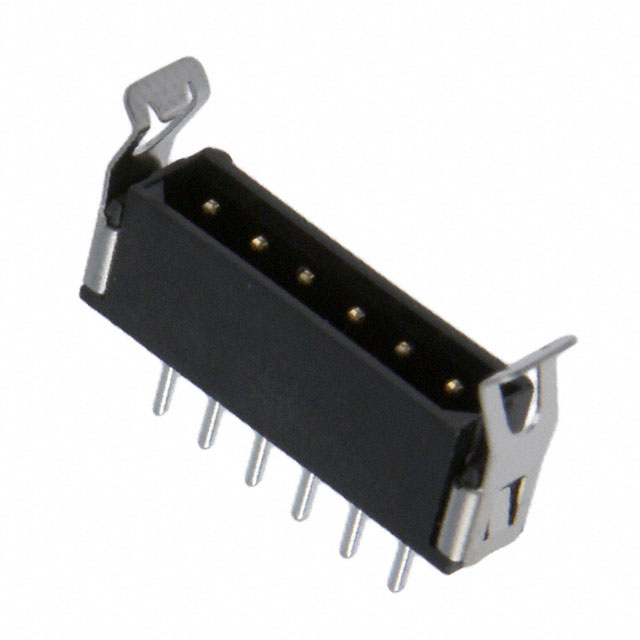

The Harwin M80-8820642 is a Datamate L-Tek series PCB header featuring 6 contacts in a single row with a 2mm pitch. Designed for board-to-board and wire-to-board connections, it utilizes through-hole mounting with vertical orientation. The connector supports a maximum voltage of 120V and carries a current rating of 3A. It employs phosphor bronze contacts with selective gold plating housed in PPS plastic. Operating temperatures range from -55°C to 125°C, and the terminal pins provide a 3mm tail length.

Feature Summary

• Datamate L-Tek series design provides robust mechanical locking via friction latch mechanism
• Selective gold contact plating ensures reliable signal transmission and corrosion resistance
• Shrouded housing structure protects contacts during mating processes
• Vertical pin configuration facilitates standard PCB layout integration

Applications

• Industrial control system interconnects
• Consumer electronics internal wiring
• Telecommunications equipment modules
• Automotive electronic assemblies

Procurement Notes

Verify component authenticity by checking manufacturer markings against official datasheets. Confirm that the specific ordering suffix matches the required contact finish and housing color. Ensure compatibility with mating connectors within the same Datamate L-Tek family to guarantee proper mechanical engagement and electrical continuity.

Selection Notes

Select this component when a vertical, latched through-hole header is required for low-voltage applications. Consider the 2mm pitch constraint for trace spacing requirements. Evaluate the 3A current rating against circuit load demands. Verify that the shrouded design aligns with assembly space limitations and protection needs.

Part Context

This part belongs to the Datamate L-Tek family, known for high-density interconnect solutions. The M80 prefix indicates a rectangular connector system designed for durability. This specific model represents a male pin header variant intended for secure board stacking or cable attachment in compact electronic environments.

Replacement Considerations

M80-8420642 serves as a parameter-equivalent alternative within the same series. Both share identical contact counts, pitch, and mounting styles. Verify housing color and specific plating thickness differences before substitution.
