M80-8821742

Overview

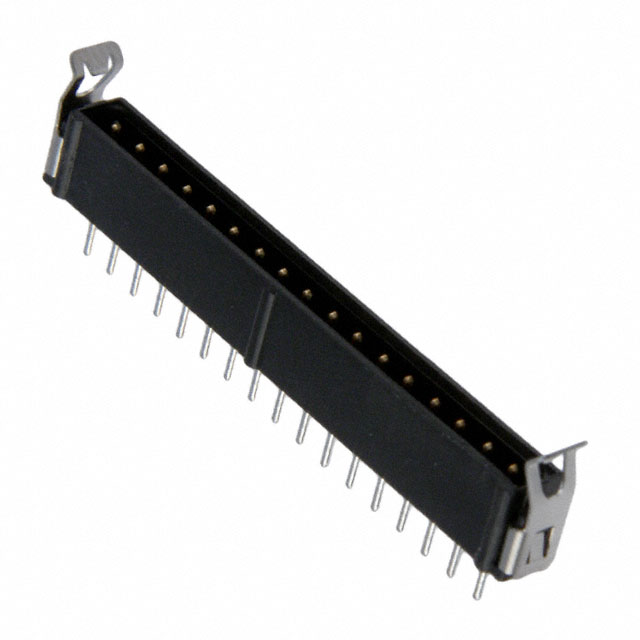

The M80-8821742 is a Datamate L-Tek header connector manufactured by Harwin Inc. It features a single row of 17 positions with a 2mm pitch. Designed for surface mount technology, it utilizes male pins with tin plating. The unit operates within a temperature range of -55°C to +125°C and carries UL94 V-0 flammability ratings.

Feature Summary

• Vertical surface mount configuration for direct PCB integration
• Integrated latch mechanism for secure mating retention
• Single-row design with male pin contacts

Applications

• Board-to-board interconnections requiring vertical stacking
• Wire-to-board assemblies utilizing compatible housings
• Compact electronic modules needing secured latching connections

Procurement Notes

Verify component obsolescence status prior to procurement as the part is listed as obsolete. Confirm that the tin-plated contact finish meets environmental compliance requirements for the target application. Ensure surface mount assembly processes are compatible with the specified tail length and latch structure.

Selection Notes

Select this component when a vertical, latched header is required for space-constrained designs. The single-row layout suits applications needing moderate density without dual-row complexity. Verify compatibility with mating sockets from the same Datamate L-Tek family to ensure proper mechanical engagement and electrical continuity.

Part Context

This connector belongs to the Datamate L-Tek series, known for high-density interconnect solutions. The model represents a specific variant optimized for surface mounting with integrated locking features. It serves as a critical interface element in modern electronics manufacturing where reliable vertical connections are essential.

Replacement Considerations

M80-8821742 is officially classified as obsolete. No direct substitute part numbers are confirmed in public documentation. Designers should evaluate alternative Datamate L-Tek headers or consult manufacturer engineering support for current equivalent components.
