M80-8870801

Overview

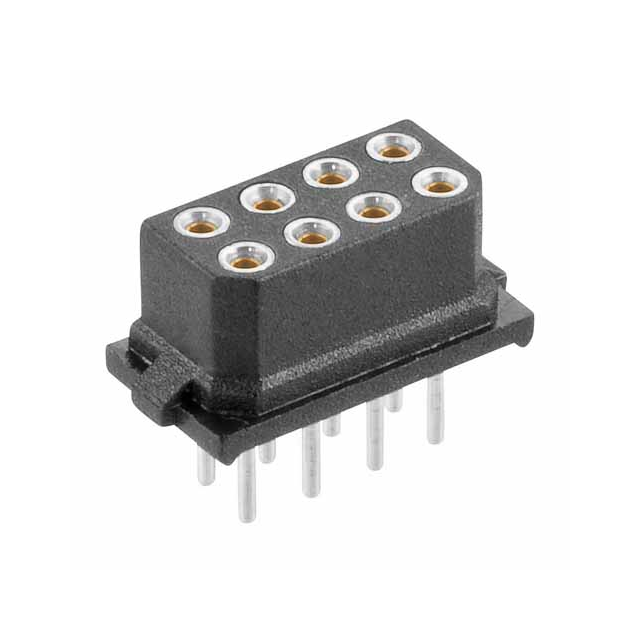

The Harwin M80-8870801 is an 8-position (4+4) female receptacle connector from the Datamate L-Tek series. It features a 2.00mm pitch and vertical through-hole mounting for PCB integration. The contacts are tin-plated beryllium copper, designed for wire-to-board applications with friction latch retention.

Feature Summary

• Utilizes high-reliability four-finger beryllium copper contact technology to ensure connection integrity without signal loss.
• Incorporates a vertical form factor with integrated friction latches for secure board attachment.

Applications

• Wire-to-board interconnections
• PCB header assemblies
• Industrial control systems

Procurement Notes

Verify that the tin plating specification matches application requirements, as gold options exist in this series. Confirm vertical orientation compatibility with enclosure constraints. Ensure mating parts belong to the same Datamate L-Tek family for proper engagement.

Selection Notes

Select this variant when tin plating is preferred over gold for cost efficiency or specific soldering profiles. The vertical design suits space-constrained boards where horizontal headers are unsuitable. Verify pin count alignment with circuit requirements.

Part Context

This component belongs to the Datamate L-Tek family, characterized by robust mechanical locking and high-density connectivity. It complements male counterparts within the same series to form complete interconnect solutions for demanding environments.

Replacement Considerations

M80-8870805 serves as a direct substitute offering identical specifications but with gold-plated contacts instead of tin.
