Product Detailed Parameters
- Description：CONN RCPT 10POS 0.079 GOLD PCB
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：10
- Number of Positions Loaded：All
- Pitch - Mating：0.079" (2.00mm)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：12.0µin (0.30µm)
- Insulation Color：Black
- Insulation Height：0.202" (5.14mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Tin-Lead
- Mated Stacking Heights：7.23mm, 7.85mm
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：-
- Voltage Rating：800V
Download product information
Overview

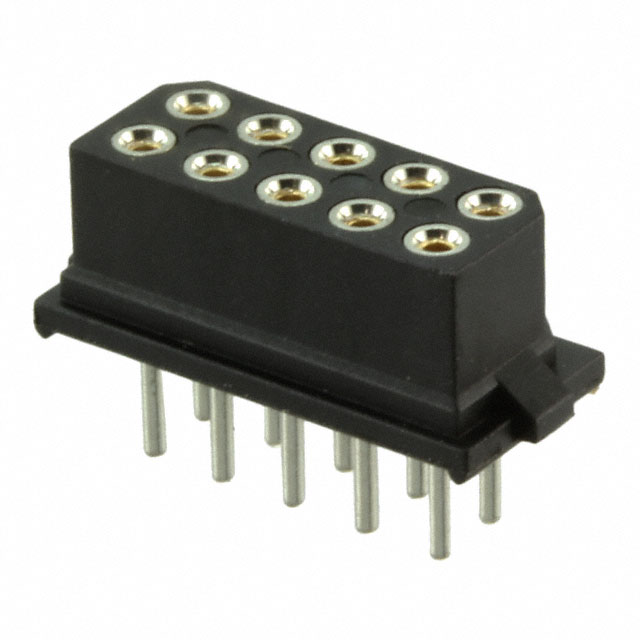

The Harwin M80-8871001 is a Datamate L-Tek series double-row female receptacle connector designed for through-hole PCB mounting. It features 10 positions (5+5) with a 2.00mm pitch and 3.00mm tail length. The contacts utilize gold plating on the mating interface and tin-lead plating on the termination area, housed in black polyester insulation reinforced with glass fiber. Rated for 800V and operating between -55°C and 125°C, it employs a slide latch locking mechanism.
Feature Summary
- Datamate L-Tek series construction with slide latch locking mechanism
- Gold-plated mating contacts for reliable signal transmission
- Glass-fiber reinforced polyester insulation for UL94 V-0 flammability rating
- Through-board termination with 3.00mm tail height
Applications
- Automotive electronic systems
- Military equipment interconnects
- General industrial control boards
Procurement Notes
Verify the specific ordering suffix to confirm contact finish and tail dimensions. Ensure the procurement specification matches the required 3.00mm tail length and gold-plated contact configuration. Confirm that the dual-row 5+5 pin count aligns with the target PCB footprint design requirements.
Selection Notes
Select this component when a vertical through-hole female receptacle with secure slide-latch retention is required. The 2.00mm pitch allows for dense board layouts while maintaining robust mechanical stability. Verify compatibility with corresponding male headers within the same Datamate L-Tek family.
Part Context
This part belongs to the Harwin Datamate L-Tek family, known for rugged performance in harsh environments. The M80-887 prefix indicates a standard double-row female socket assembly. This specific model provides a fixed 10-position configuration optimized for direct PCB integration without additional housing variations.
Replacement Considerations
Compatible substitutes include other Harwin M80-887xxxx variants with identical 2.00mm pitch and 10-position layout. Cross-referencing requires matching the 3.00mm tail height and slide latch style to ensure mechanical interchangeability.
FAQ
What is the locking mechanism type?
The connector uses a slide latch locking system for secure mating.
What is the rated voltage?
The maximum rated voltage is 800V.
