Product Detailed Parameters
- Description：CONN RCPT 10POS 0.079 GOLD PCB
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：10
- Number of Positions Loaded：All
- Pitch - Mating：0.079" (2.00mm)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：12.0µin (0.30µm)
- Insulation Color：Black
- Insulation Height：0.202" (5.14mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：7.23mm, 7.85mm
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：-
- Voltage Rating：800V
Download product information
Overview

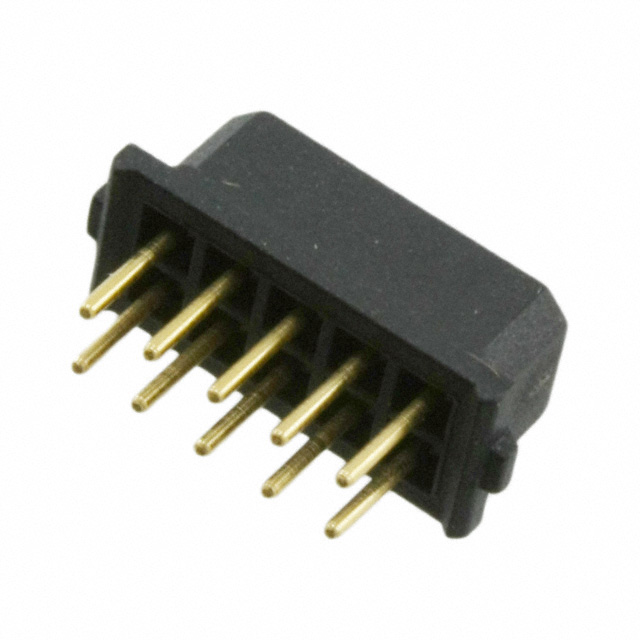

The M80-8871005 is a Datamate L-Tek female receptacle connector manufactured by Harwin Inc. It features a double-row configuration with 10 positions (5+5) and a 2.00mm pitch. Designed for through-hole vertical mounting, the unit utilizes beryllium copper contacts with gold plating on mating surfaces. The housing is constructed from glass-filled polyester, ensuring structural integrity in demanding environments.
Feature Summary
- High-reliability four-finger beryllium copper contact technology ensures connection integrity without signal loss
- Gold-plated circular contact areas provide durable electrical interfaces
- Glass-filled polyester insulation material offers robust mechanical support
Applications
- Aviation systems requiring reliable interconnects
- Defense electronic equipment
- Medical critical electronic devices
- Space applications subject to severe vibration and shock
Procurement Notes
Verify component authenticity against official Harwin documentation. Confirm that the specific part number matches the required 10-position double-row specification. Ensure compatibility with mating male headers within the Datamate L-Tek series. Check for any updated obsolescence notices or lifecycle changes directly from the manufacturer before finalizing procurement plans.
Selection Notes
Select this component when a vertical through-hole female receptacle is required for space-constrained designs. The 2.00mm pitch allows for high-density board layouts. Consider the beryllium copper contact material for applications demanding high durability and repeated mating cycles. Verify that the operating temperature range aligns with system requirements.
Part Context
This component belongs to the Datamate L-Tek series, known for rugged performance in harsh environments. The M80 prefix indicates the specific connector family designed for high reliability. This series is widely utilized in sectors where connection failure is not an option, such as aerospace and medical instrumentation.
Replacement Considerations
M80-8871001
