Product Detailed Parameters
- Description：CONN RCPT 12POS 0.079 GOLD PCB
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：12
- Number of Positions Loaded：All
- Pitch - Mating：0.079" (2.00mm)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：12.0µin (0.30µm)
- Insulation Color：Black
- Insulation Height：0.202" (5.14mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：7.23mm, 7.85mm
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：-
- Voltage Rating：800V
Download product information
Overview

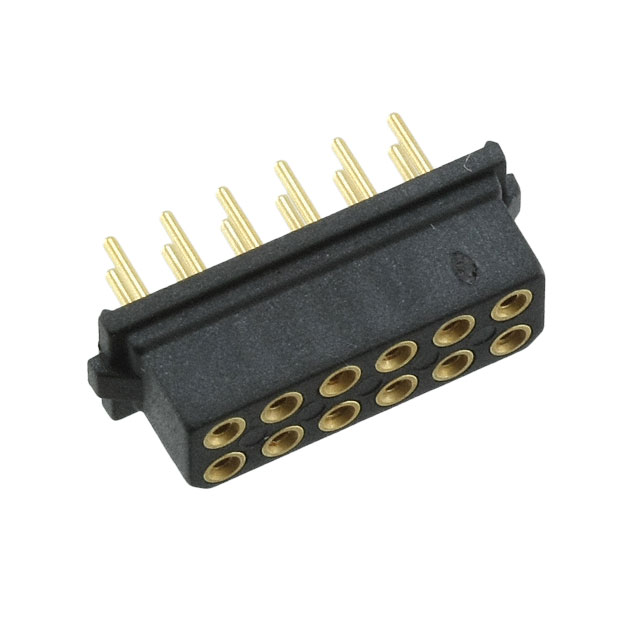

The M80-8871205 is a Datamate L-Tek connector assembly manufactured by Harwin. It features a 2 mm pitch and a double in-line (DIL) configuration with 6+6 positions, totaling 12 contacts. The component utilizes female socket terminals with gold plating for reliable signal transmission. Designed for vertical PCB mounting, it employs a PC tail termination style suitable for through-hole soldering applications.
Feature Summary
- Double in-line architecture providing high-density connectivity within a compact footprint
- Gold-plated female sockets ensuring low contact resistance and corrosion resistance
- Vertical orientation design facilitating direct printed circuit board integration
Applications
- Industrial control systems requiring robust interconnects
- Test and measurement equipment interfaces
- Automotive electronics modules
Procurement Notes
Verify the specific suffix code against official Harwin documentation to confirm terminal type and housing material. Ensure compatibility with mating male pins from the same Datamate series. Check RoHS compliance status via the manufacturer datasheet before finalizing procurement specifications.
Selection Notes
Select this part for applications demanding vertical board mounting with a 2 mm pitch. Confirm that the required current rating aligns with system specifications. Validate that the PCB layout supports the PC tail termination method and matches the DIL spacing requirements.
Part Context
This component belongs to the Datamate L-Tek family, known for its versatility in mixed-signal applications. The series offers various configurations including cable-to-board and power-to-board options. The M80 prefix indicates a standard connector housing or assembly within the broader Harwin portfolio.
Replacement Considerations
- M80-8871205
FAQ
What is the contact gender of the M80-8871205?
The M80-8871205 features female socket contacts designed to mate with male pin connectors.
Does this connector support surface mount technology?
No, the M80-8871205 uses a PC tail termination style intended for through-hole vertical mounting on a PCB.
