M80-8871401

Overview

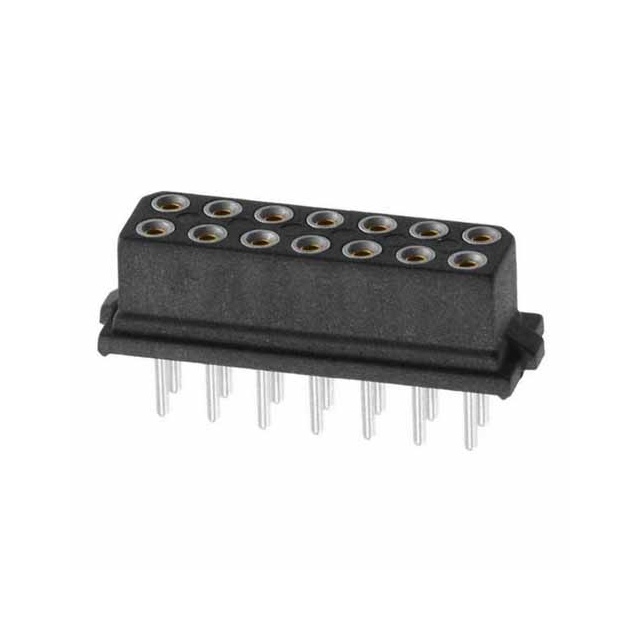

The Harwin M80-8871401 is a Datamate L-Tek series connector, specifically a 14-position receptacle with female sockets. It features a 2.00mm pitch and is designed for vertical through-hole termination. The housing is constructed from black polyester reinforced with glass fiber, rated UL94 V-0. Contacts are made of phosphor bronze with a gold plating on the mating interface (0.75µm thickness) and tin-lead finish on the tail. Rated at 120V and 2.2A, it operates within a temperature range of -55°C to 125°C.

Feature Summary

• Vertical orientation design for direct printed circuit board mounting
• Gold-plated contact surfaces ensure reliable signal transmission
• Integrated pin lock mechanism provides secure mating retention

Applications

• Board-to-board interconnections in industrial control systems
• Power distribution modules requiring high-reliability connections
• Embedded electronic assemblies with space-constrained vertical layouts

Procurement Notes

Verify that the specific part number matches the required socket configuration and pin count. Confirm that the vertical through-hole termination style aligns with the target PCB assembly process. Ensure compatibility with the corresponding male header from the same Datamate L-Tek series for proper mechanical engagement.

Selection Notes

Select this component when a vertical female receptacle is required for a 2.00mm pitch system. Consider the 14-position count and current rating against the application's electrical load. Evaluate the through-hole mounting requirement against available surface area and manufacturing capabilities.

Part Context

This component belongs to the Harwin Datamate L-Tek family, known for high-density interconnect solutions. The M80-8871401 variant specifically addresses applications needing vertical socket assemblies. It complements male headers within the same product ecosystem to form robust connection pairs.

Replacement Considerations

Direct substitutes include other Harwin M80 series vertical sockets with identical 14-position counts and 2.00mm pitch specifications. Verify cross-compatibility with existing male headers before substitution.
