M80-8871405

Overview

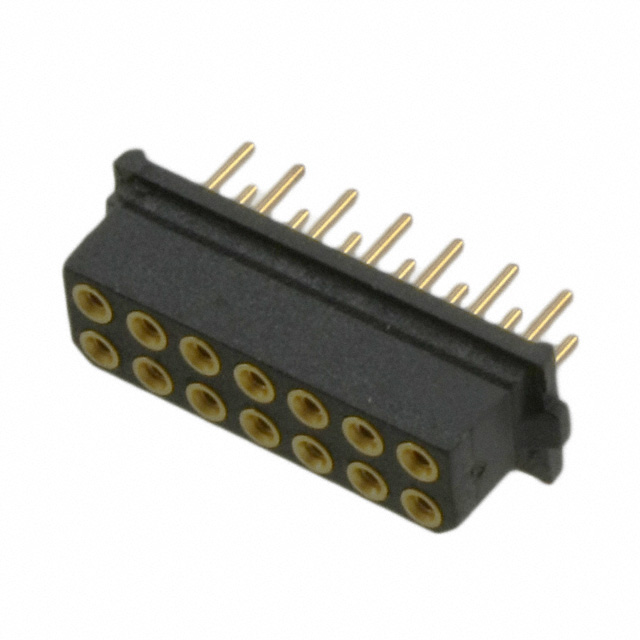

The Harwin M80-8871405 is a 14-position female vertical socket assembly from the Datamate L-Tek series. It features a 2.00mm pitch and through-hole mounting style. The connector utilizes gold-plated contacts with a nickel barrier, offering a contact resistance of 25 mΩ. Rated for 3A current and 120V voltage, it operates within a temperature range of -55°C to +125°C. Constructed with beryllium copper contacts and thermoplastic housing, this polarized DIL receptacle ensures reliable board-to-board or cable-to-board connections.

Feature Summary

• Polarized design prevents misalignment during mating
• Gold-plated contacts ensure low resistance and corrosion resistance
• Vertical through-hole termination facilitates PCB integration

Applications

• Board-to-board interconnections
• Cable-to-board connections
• High-reliability electronic systems

Procurement Notes

Verify component authenticity by checking manufacturer markings against official datasheets. Confirm RoHS compliance status as listed data indicates non-compliance. Ensure ordering suffixes match required specifications. Request certified test reports for critical applications. Validate packaging details upon receipt to prevent handling damage.

Selection Notes

Select this model for applications requiring high reliability and precise alignment. The polarized feature reduces insertion errors. Verify thermal requirements against the specified operating range. Consider the vertical orientation for space-constrained PCB layouts. Ensure mating connectors match the Datamate L-Tek series specifications.

Part Context

This component belongs to the Harwin Datamate L-Tek series, designed for high-reliability interconnects. The M80 series offers robust performance in demanding environments. It supports both board-to-board and cable-to-board configurations. The product line emphasizes durability and consistent electrical performance across various industrial applications.

Replacement Considerations

Compatible substitutes include other Harwin Datamate L-Tek female sockets with matching 2.00mm pitch and 14 positions. Verify polarization keying and terminal style compatibility. Ensure equivalent current and voltage ratings are maintained. Cross-reference mechanical dimensions for proper fit.
