M80-8871605

Overview

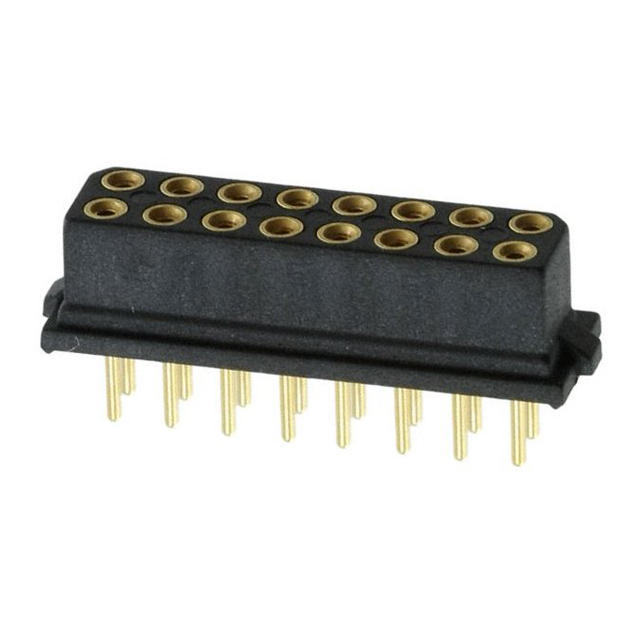

The M80-8871605 is a Datamate L-Tek series receptacle connector manufactured by Harwin. It features a 16-position configuration with a 2.00mm (0.079 inch) pitch across two rows. The component utilizes gold-plated contacts and is designed for through-hole mounting on printed circuit boards. This male pin housing accommodates wire gauges typically ranging from 24 to 28 AWG, ensuring reliable electrical connections in compact electronic assemblies.

Feature Summary

• Datamate L-Tek high-reliability interconnect system
• Gold-plated contact surfaces for corrosion resistance
• Dual-row DIL configuration for space efficiency

Applications

• Industrial control systems
• Medical instrumentation
• Automotive electronics

Procurement Notes

Verify the specific datasheet revision when sourcing, as manufacturing updates may occur. Confirm that the required mating socket housings are compatible with the 2.00mm pitch specification. Ensure that the crimping tools used match the terminal specifications for the intended wire gauge range to maintain connection integrity.

Selection Notes

Select this part for applications requiring robust signal transmission in constrained spaces. The dual-row design maximizes I/O density while maintaining standard spacing. Consider the mechanical locking features of the mating connector to ensure secure assembly during vibration or movement.

Part Context

This component belongs to the Datamate family, known for its modular design and high cycle life. The L-Tek variant specifically focuses on durability and environmental sealing capabilities. It serves as a critical interface between PCB-mounted circuits and external wiring harnesses.

Replacement Considerations

M80-8871605 is an obsolete product. The confirmed public substitute is M80-8520642. Verify pin count and pitch compatibility before transitioning to the replacement part number.
