Product Detailed Parameters
- Description：CONN RCPT 18POS 0.079 GOLD PCB
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：18
- Number of Positions Loaded：All
- Pitch - Mating：0.079" (2.00mm)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：12.0µin (0.30µm)
- Insulation Color：Black
- Insulation Height：0.202" (5.14mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Tin-Lead
- Mated Stacking Heights：7.23mm, 7.85mm
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：-
- Voltage Rating：800V
Download product information
Overview

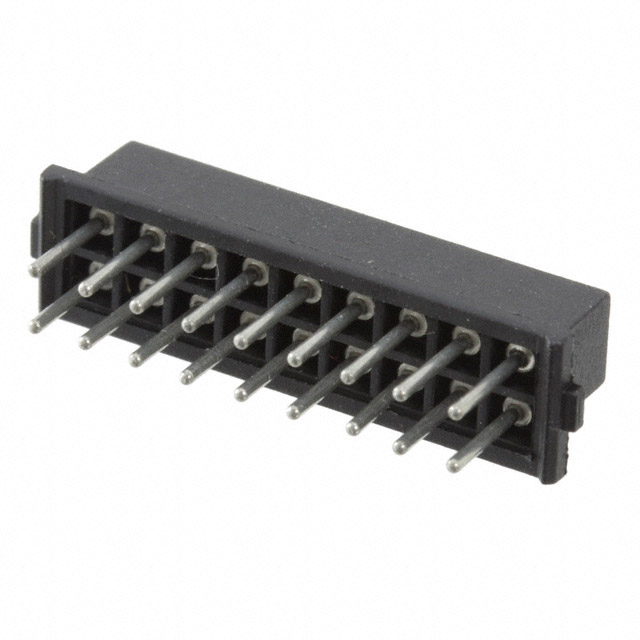

The Harwin M80-8871801 is an 18-position female receptacle connector from the Datamate Power to the Board series. It features a 2.00mm pitch and vertical through-hole termination. The contacts are gold-plated, ensuring reliable signal transmission in power distribution applications.
Feature Summary
- Vertical orientation for direct board mounting
- Gold-plated contacts for corrosion resistance
- Through-hole termination style
Applications
- Power distribution modules
- Industrial control systems
- Telecommunications equipment
Procurement Notes
Verify component authenticity against official Harwin documentation. Confirm that the part number matches the specific 18-position configuration. Ensure compliance with relevant safety standards before integration into final assemblies.
Selection Notes
Select this component for applications requiring vertical power connections. Consider the 2.00mm pitch and contact plating requirements. Evaluate mechanical stability needs for through-hole mounting on printed circuit boards.
Part Context
This connector belongs to the Datamate Power to the Board family designed for high-reliability power distribution. It provides secure connections between PCBs and external power sources or modules.
Replacement Considerations
Consult official Harwin documentation for verified substitute part numbers. Do not assume cross-compatibility with other connector families without manufacturer confirmation.
