M80-8872005

Overview

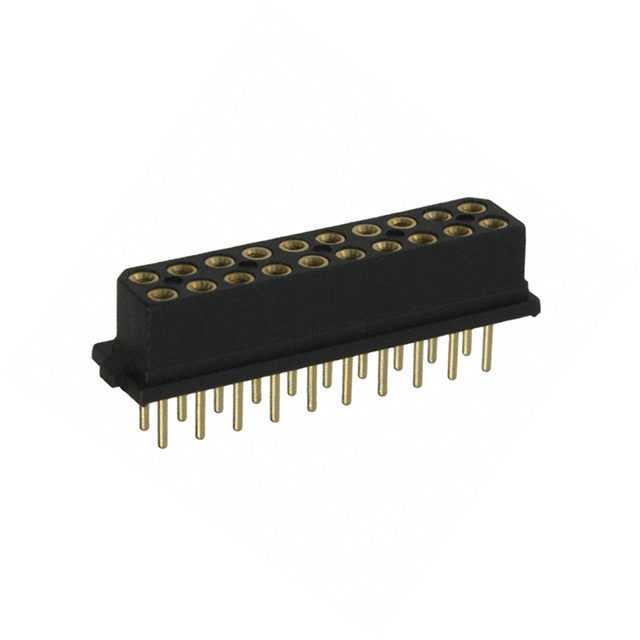

The Harwin M80-8872005 is a Datamate L-Tek series receptacle connector featuring 20 positions arranged in a double row (10+10). It utilizes a 2.00mm pitch with a 2.00mm row spacing, designed for vertical through-hole mounting on printed circuit boards. The contacts are made of copper beryllium with a gold finish, offering a contact plating thickness of 10.0µin (0.25µm) and a mating surface thickness of 12.0µin (0.30µm). The housing is constructed from black polyester reinforced with glass fiber, rated UL94 V-0 for flammability. It supports a rated voltage of 800V and operates within a temperature range of -55°C to 125°C. Mated stacking heights are specified at 7.23mm and 7.85mm.

Feature Summary

• Vertical double-row female socket design for board-to-board or cable connections
• Gold-plated copper beryllium contacts ensuring reliable signal transmission
• Glass-fiber reinforced polyester insulation providing high thermal stability and flame resistance
• Slide-lock fastening mechanism for secure mating engagement

Applications

• Automotive electronic systems
• Military equipment interfaces
• General industrial control applications

Procurement Notes

Verify the specific part number against official Harwin documentation to confirm current availability status. Ensure that the required stacking height variants match the mechanical constraints of the target assembly. Cross-reference the RoHS compliance details and material safety data sheets prior to integration into final products.

Selection Notes

Select this component when a 2.00mm pitch vertical receptacle with 20 pins is required. Confirm that the through-hole termination method aligns with the PCB fabrication capabilities. Evaluate the 800V rating and operating temperature range against the environmental conditions of the intended application site.

Part Context

This component belongs to the Datamate L-Tek family, known for robust performance in demanding environments. The M80-8872005 variant specifically addresses needs for high-density vertical interconnects. It complements male header counterparts within the same series to form complete connection assemblies.

Replacement Considerations

M80-8872605 serves as a related variant within the same series but features 26 positions instead of 20. Verify pin count compatibility before substitution.
