M80-8872601

Overview

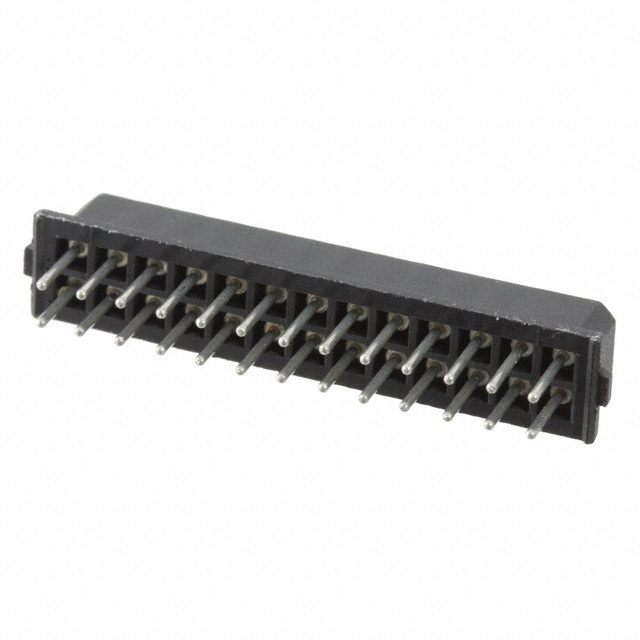

The Harwin M80-8872601 is a Datamate L-Tek series female receptacle connector designed for board-to-board and wire-to-board applications. It features a dual in-line configuration with 26 positions arranged in two rows of thirteen contacts each. The connector utilizes a 2.00 mm (0.079 inch) pitch and supports through-hole mounting on printed circuit boards. Contact surfaces are finished with tin/lead plating to ensure reliable electrical connections. The housing is constructed from black polyphenylene sulfide material, providing structural integrity and thermal stability.

Feature Summary

• Dual in-line female socket design accommodating 26 contact positions
• Through-hole termination method for secure PCB integration
• Tin/lead plated contact surfaces for conductivity
• Polyphenylene sulfide housing construction

Applications

• Board-to-board interconnection systems
• Wire-to-board assembly configurations
• Industrial control panel wiring
• Electronic equipment internal signal routing

Procurement Notes

Verify the specific pin count and pitch requirements against the target application schematic before ordering. Confirm that the tin/lead contact finish aligns with environmental compliance standards such as RoHS if lead-free operation is mandatory. Ensure the through-hole mounting style matches the PCB fabrication capabilities and available space constraints within the device enclosure.

Selection Notes

Select this component when a high-density 26-position female interface is required for rigid PCB connections. The Datamate L-Tek series offers robust mechanical retention suitable for demanding environments. Consider the tin/lead finish if solderability is prioritized over strict lead-free regulations. Evaluate the vertical orientation to determine compatibility with adjacent components and cable routing paths.

Part Context

This part belongs to the Harwin Datamate L-Tek family, which specializes in high-reliability connectors for industrial and automotive sectors. The L-Tek variant typically denotes specific locking mechanisms or form factors distinct from the Mix-Tek or J-Tek lines. This particular model represents a standard female receptacle option within the broader product portfolio.
