Product Detailed Parameters
- Description：CONN RCPT 26POS 0.079 GOLD PCB
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：26
- Number of Positions Loaded：All
- Pitch - Mating：0.079" (2.00mm)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：12.0µin (0.30µm)
- Insulation Color：Black
- Insulation Height：0.202" (5.14mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：7.23mm, 7.85mm
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：-
- Voltage Rating：800V
Download product information
Overview

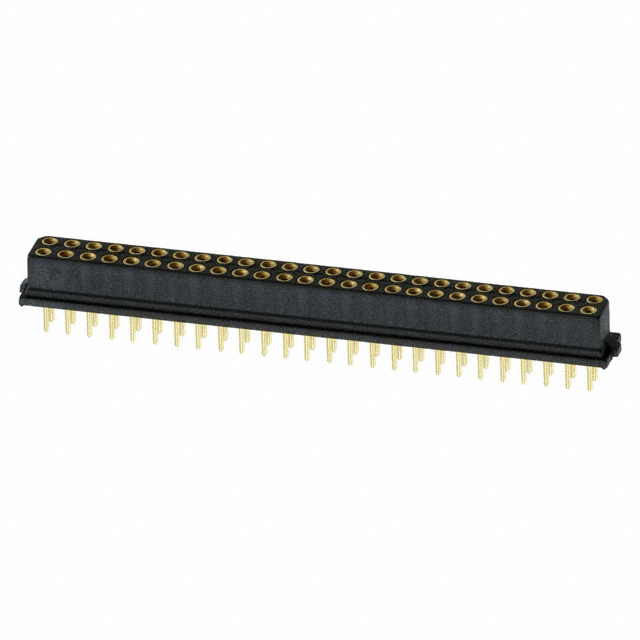

The M80-8872605 is a 26-position female receptacle connector from the Datamate L-Tek series by Harwin Inc. It features a 0.079-inch (2.00mm) mating pitch and is designed for through-hole mounting on printed circuit boards. The connector utilizes gold-plated contacts with a thickness of 12.0µin (0.30µm) to ensure reliable signal transmission. Constructed with black polyester insulation reinforced with glass fiber, it meets UL94 V-0 flammability standards. The unit operates within a temperature range of -55°C to 125°C and supports a rated voltage of 800V.
Feature Summary
- Features a slide-lock fastening mechanism for secure board-to-board or cable connections.
- Utilizes round contact shapes made from beryllium copper for durability.
- Designed with a vertical PC tail configuration for standard through-hole assembly.
Applications
- Automotive electronic systems
- General industrial equipment
- Military applications
Procurement Notes
Verify that the specific part number matches the required 26-position count and through-hole termination style. Confirm compatibility with the corresponding Datamate L-Tek male header regarding the 2.00mm pitch and slide-lock interface. Ensure environmental ratings meet the operational requirements for the intended application environment.
Selection Notes
Select this component when a high-reliability, vertically mounted socket is required for dense interconnects. The gold plating and robust insulation material make it suitable for demanding environments. Consider the physical stack-up height constraints and the specific locking mechanism requirements before finalizing the design integration.
Part Context
This component belongs to the Datamate L-Tek family, which is engineered for high-density interconnect solutions. The series is known for its compact form factor and reliable performance in space-constrained designs. It serves as a critical interface element in modern electronic assemblies requiring robust mechanical and electrical connections.
Replacement Considerations
M80-8872605
FAQ
What is the contact material used in this connector?
The contacts are manufactured from beryllium copper to provide necessary spring properties and conductivity.
Does this connector support surface mount technology?
No, this specific model is designed exclusively for through-hole mounting via vertical PC tails.
