Product Detailed Parameters

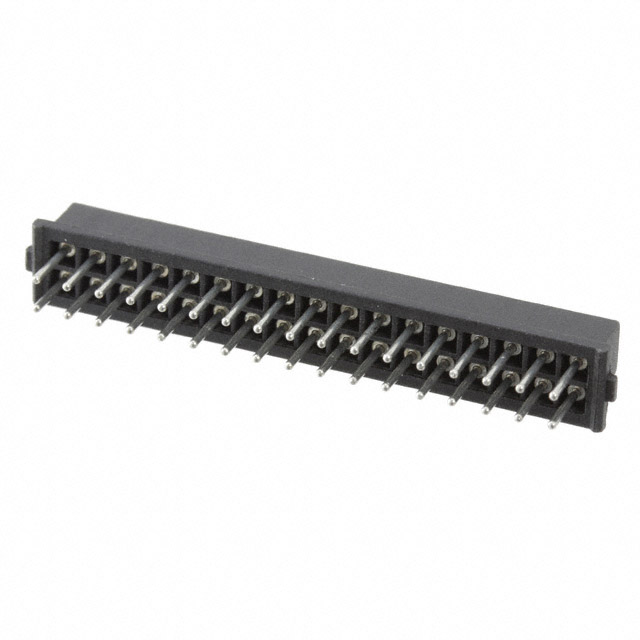

- Description：CONN RCPT 34POS 0.079 GOLD PCB
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：34
- Number of Positions Loaded：All
- Pitch - Mating：0.079" (2.00mm)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：12.0µin (0.30µm)
- Insulation Color：Black
- Insulation Height：0.202" (5.14mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Tin-Lead
- Mated Stacking Heights：7.23mm, 7.85mm
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：-
- Voltage Rating：800V
Download product information
Overview
The M80-8873401 is a 34-position female socket connector from the Harwin Datamate Mix-Tek series. It features a 2-row configuration with a 2.00mm (0.079 inch) pitch. Designed for through-hole mounting, it utilizes crimp termination for wire connections. The contacts are gold-plated to ensure reliable signal transmission. The housing is black and constructed from durable materials suitable for industrial environments.
Feature Summary
- Datamate Mix-Tek series design for high-density interconnects
- Gold-plated female sockets for corrosion resistance
- Through-hole mounting with crimp termination
- Dual-row layout accommodating 34 positions
Applications
- Automotive electronic systems
- General purpose industrial equipment
- Military grade hardware integration
Procurement Notes
Verify component authenticity against official Harwin documentation before integration. Confirm that the specific ordering suffix matches the required contact finish and housing material specifications. Ensure compatibility with mating headers within the same Datamate family to maintain proper stacking heights and mechanical alignment during assembly processes.
Selection Notes
Select this model when a high-count, dual-row female receptacle is required for panel or cable applications. The Mix-Tek series offers robust locking mechanisms suitable for vibration-prone environments. Consider the 2.00mm pitch constraints and crimp termination requirements when designing the PCB footprint and wire harness preparation procedures for optimal performance.
Part Context
This component belongs to the Datamate Mix-Tek line, which provides versatile interconnect solutions for demanding applications. The series is known for its compact form factor and reliable performance in automotive, military, and general industrial sectors. It complements male headers and cable assemblies to create complete connection systems.
Replacement Considerations
M80-8873405 is a parameter-equivalent alternative within the same series. Verify mechanical dimensions and electrical ratings before substitution to ensure system compatibility.
