M80-8970201

Description：CONN RCPT 2POS 0.079 GOLD PCB
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube

SKU:e762d484f285 Category: Headers, Receptacles, Female Sockets Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN RCPT 2POS 0.079 GOLD PCB
Series：Datamate L-Tek
Mfr：Harwin Inc.
Package：Tube
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board or Cable
Number of Positions：2
Number of Positions Loaded：All
Pitch - Mating：0.079" (2.00mm)
Number of Rows：1
Row Spacing - Mating：-
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Locking Ramp
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：12.0µin (0.30µm)
Insulation Color：Black
Insulation Height：0.202" (5.14mm)
Contact Length - Post：0.118" (3.00mm)
Operating Temperature：-55°C ~ 125°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin-Lead
Mated Stacking Heights：7.23mm, 7.83mm
Ingress Protection：-
Features：-
Current Rating (Amps)：-
Voltage Rating：800V

Download product information

M80-8970201

Overview

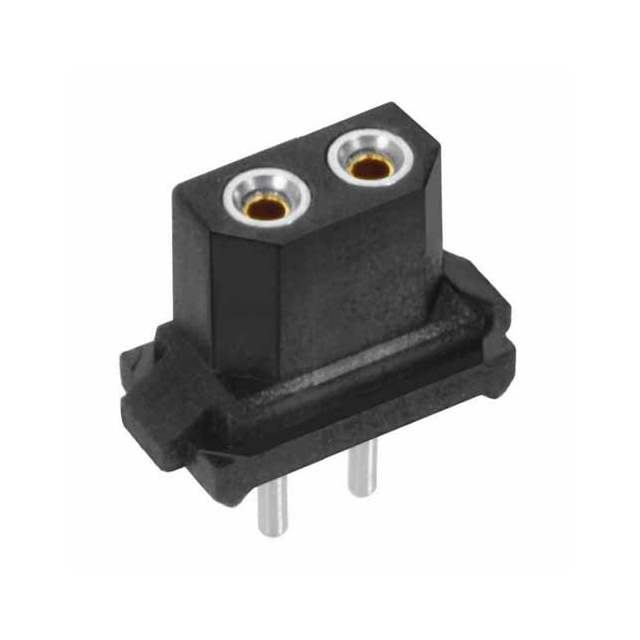

The M80-8970201 is a 2-position female socket connector from the Harwin Datamate J-Tek series. It features a 2.00mm (0.079 inch) pitch and is designed for vertical PCB mounting with PC tail termination. The contacts are gold-plated to ensure reliable signal transmission. This component is classified as a free-hanging or panel-mount receptacle, suitable for discrete cable applications.

Feature Summary

Vertical printed circuit board mounting configuration
Gold-plated contact surfaces for conductivity
Compact two-position layout within the Datamate family

Applications

General electronic interconnects
Automotive systems
Military equipment

Procurement Notes

Verify the specific suffix against the official datasheet to confirm orientation and termination style. Ensure compatibility with mating male headers from the same Datamate J-Tek series. Confirm that the vertical PC tail design meets the mechanical constraints of the target assembly.

Selection Notes

Select this part when a low-profile, vertically oriented socket is required for minimal space consumption. The two-position count suits simple signal routing needs. Verify that the gold plating thickness meets environmental durability requirements for the intended operational lifespan.

Part Context

This component belongs to the Datamate J-Tek line, known for high-reliability interconnects in harsh environments. The series offers various row counts and termination options, providing modular flexibility for diverse industrial and commercial connectivity challenges.
