M80-8970205

Overview

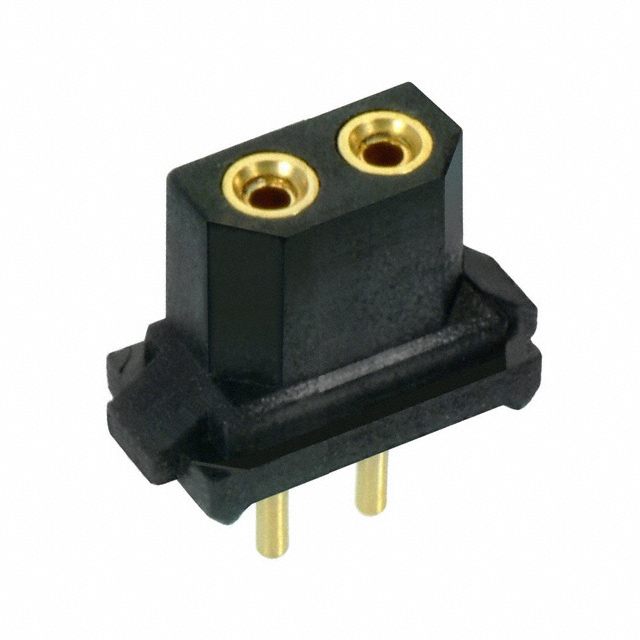

The M80-8970205 is a Datamate L-Tek power connector socket assembly manufactured by Harwin Inc. It features a single row of two positions with a 2mm pitch. Designed for vertical through-hole mounting, it utilizes gold-plated beryllium copper contacts and a thermoplastic housing. The component supports a rated current of 3A and a voltage of 300V, operating within a temperature range of -55°C to +125°C.

Feature Summary

• Vertical through-hole termination for secure PCB integration
• Gold-plated beryllium copper contacts for reliable conductivity
• Thermoplastic housing material ensuring structural integrity

Applications

• Power distribution in industrial control systems
• Embedded electronics requiring compact power connections
• Consumer device internal wiring harnesses

Procurement Notes

Verify the specific suffix codes against official Harwin documentation to ensure correct contact plating and housing variations. Confirm that the selected variant matches the required vertical orientation and pin count specifications before finalizing procurement orders.

Selection Notes

Select this component when a low-profile, high-current vertical connection is required. Ensure the mating header belongs to the compatible Datamate L-Tek series. Validate that the 2mm pitch aligns with the target board layout constraints and thermal management requirements.

Part Context

This part belongs to the Datamate L-Tek family, which provides robust interconnect solutions for demanding environments. The series is characterized by its small form factor and high durability, suitable for applications where space is limited but electrical performance remains critical.

Replacement Considerations

M80-8970205

FAQ

What is the rated current capacity?

The rated current capacity is 3A.

Does this connector support surface mount technology?

No, it is designed for vertical through-hole mounting.
