M80-8970501

Overview

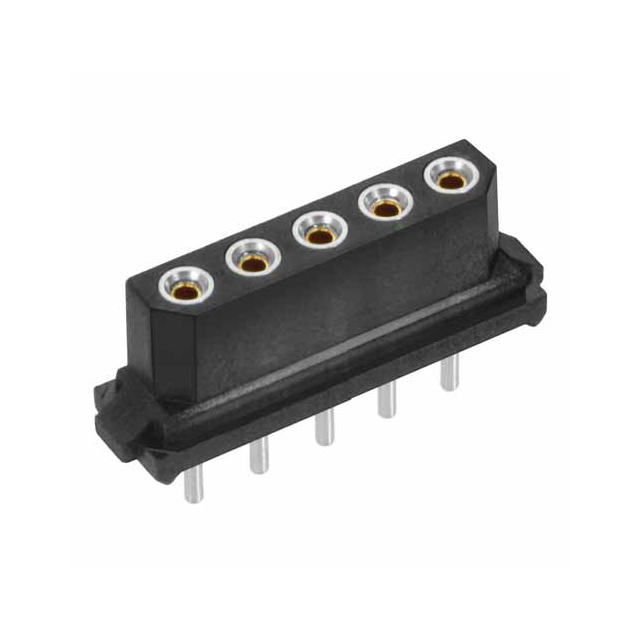

Harwin M80-8970501 is a Datamate L-Tek cable socket connector featuring 5 positions with a 2.00mm pitch. It utilizes crimp termination for 24-28 AWG wires and includes reverse-fix hex socket jackscrews for secure mounting. The component operates within a temperature range of -55°C to +125°C, supports 3A current and 300V voltage ratings, and employs gold-plated beryllium copper contacts housed in black PPS insulation.

Feature Summary

• High mechanical reliability with 100G shock, 40G bump, and 10G vibration resistance capabilities
• Secure cable retention via reverse-fix hex socket jackscrews
• Robust four-finger contact design ensures stable performance under extreme conditions

Applications

• Military and aerospace systems
• Medical equipment
• Industrial automation
• Robotics
• Data and telecommunications

Procurement Notes

Verify the specific pin configuration and housing color against official datasheets before ordering. Confirm that the reverse-fix hex socket jackscrews are included in the package. Ensure compatibility with 24-28 AWG wire gauges for proper crimping. Check for any RoHS compliance documentation requirements relevant to your project specifications.

Selection Notes

Select this model for applications requiring high durability in harsh environments. The Datamate L-Tek series offers superior shock and vibration resistance compared to standard connectors. Consider the reverse-fix mounting style if space constraints or vibration isolation are critical factors in the assembly design.

Part Context

The M80-8970501 belongs to the Harwin Datamate L-Tek family, designed for high-reliability interconnects. This series is widely used in COTS projects across military, aerospace, and industrial sectors due to its robust construction and consistent electrical performance under stress.

Replacement Considerations

M80-8980505 is a compatible alternative within the same Datamate series offering similar connectivity features.
