Product Detailed Parameters
- Description：CONN RCPT 5POS 0.079 GOLD PCB
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：5
- Number of Positions Loaded：All
- Pitch - Mating：0.079" (2.00mm)
- Number of Rows：1
- Row Spacing - Mating：-
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：12.0µin (0.30µm)
- Insulation Color：Black
- Insulation Height：0.202" (5.14mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：7.23mm, 7.83mm
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：-
- Voltage Rating：800V
Download product information
Overview

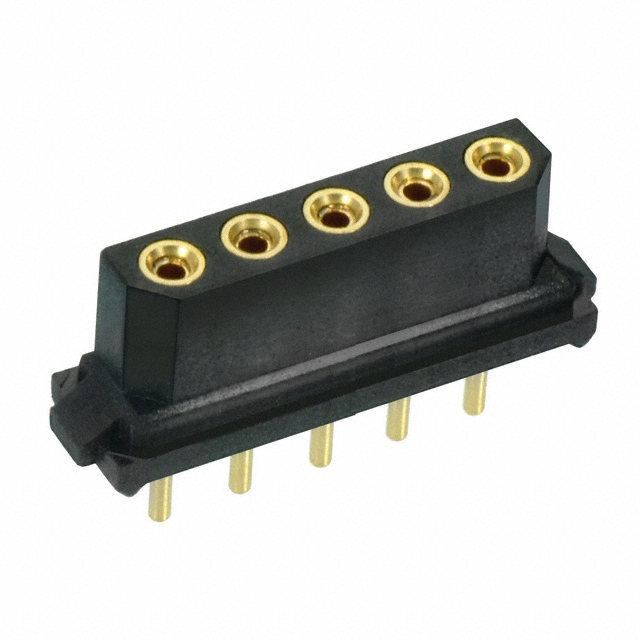

The M80-8970505 is a Datamate L-Tek series female receptacle connector manufactured by Harwin Inc. It features a single row with five positions and a 2.00mm (0.079 inch) pitch. Designed for through-board mounting, it utilizes solder termination on the PCB side and gold-plated beryllium copper contacts to ensure reliable signal transmission. The component supports wire-to-wire or wire-to-PCB interconnections within the Datamate ecosystem.
Feature Summary
- Datamate L-Tek high-reliability four-finger contact technology
- Gold-plated beryllium copper contacts for corrosion resistance
- Single-row vertical through-hole PCB termination
Applications
- Wire-to-wire interconnections
- Wire-to-PCB connections
- Industrial control systems
- Test and measurement equipment
Procurement Notes
Verify that the specific part number M80-8970505 matches the required single-row, five-position configuration. Confirm that the through-hole solder termination aligns with the target PCB layout. Ensure compatibility with mating male pins from the same Datamate L-Tek family to maintain mechanical and electrical integrity.
Selection Notes
Select this component when a low-profile, single-row female connector is required for through-board applications. The 2.00mm pitch offers a balance between density and ease of assembly. Gold plating is suitable for environments requiring long-term reliability without oxidation concerns.
Part Context
This connector belongs to the Datamate L-Tek family, known for its compact size and robust performance in demanding environments. The L-Tek variant specifically supports through-board soldering, distinguishing it from crimp-only variants. It is designed to mate with corresponding Datamate J-Tek or L-Tek male connectors.
Replacement Considerations
For direct functional substitution, consider other Harwin M80-89xxxxx series connectors with identical pin counts and pitch. Verify that any alternative maintains the single-row, female socket configuration and through-hole termination style to ensure physical compatibility.
