M80-8970601

Overview

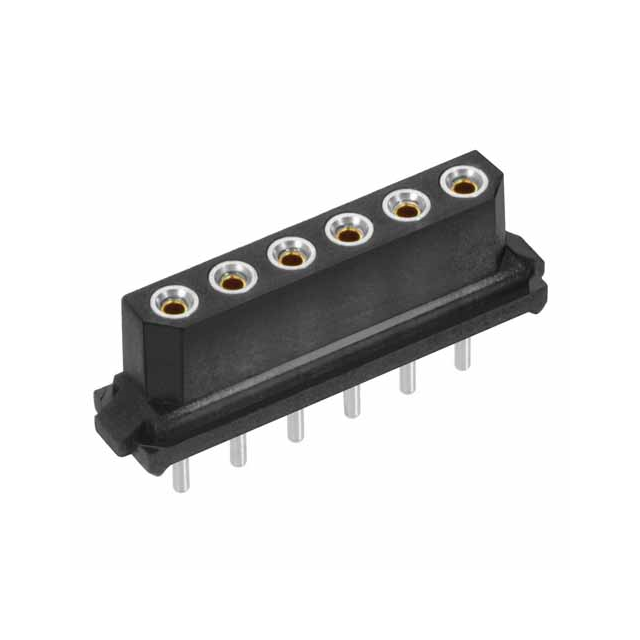

The M80-8970601 is a 6-position female receptacle connector from the Datamate series by Harwin Inc. It features a 2.00mm (0.079 inch) pin spacing and is designed for vertical through-board mounting. The connector utilizes gold-plated contacts to ensure reliable signal transmission in electronic assemblies.

Feature Summary

• Vertical through-board mounting configuration
• Gold-plated contact surfaces for conductivity
• Datamate series mechanical robustness

Applications

• Electronic circuit board interconnections
• Signal routing in compact modules
• Industrial control panel wiring

Procurement Notes

Verify RoHS compliance status prior to procurement, as available records indicate potential non-compliance with current environmental directives. Confirm that the specific batch meets project regulatory requirements. Ensure compatibility with mating male headers within the same Datamate family. Validate that the vertical orientation fits the mechanical constraints of the target enclosure design.

Selection Notes

Select this component when a low-profile, vertically oriented female connector is required for 6-wire applications. The 2.00mm pitch suits dense board layouts. Consider the Datamate series' shock and vibration resistance for demanding environments. Verify that the gold plating thickness meets the intended cycle life requirements for the specific application.

Part Context

This part belongs to the Datamate Mix-Tek or L-Tek family, known for high-density interconnects. The M80 prefix denotes Harwin's standard rectangular connector line. The 601 suffix typically indicates a 6-position variant. These connectors are engineered for mixed-signal applications requiring secure locking mechanisms.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference with other 6-position vertical female connectors from the same manufacturer if availability is critical.
