M80-8970701

Overview

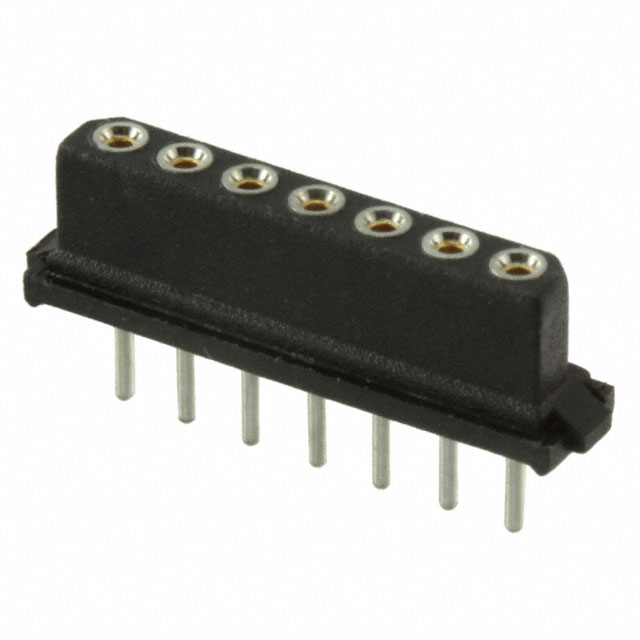

The Harwin M80-8970701 is a Datamate L-Tek series connector receptacle featuring a 2.00mm pitch and seven positions. It utilizes a single row of female sockets with gold-plated contacts for reliable signal transmission. The component is designed for vertical printed circuit board mounting via PC tail termination, ensuring secure mechanical attachment. Constructed with beryllium copper contacts and glass-filled polyester insulation, it supports high voltage ratings up to 800V. This free-hanging cable mount assembly is engineered for robust performance in demanding environments.

Feature Summary

• Vertical single-row socket assembly for direct PCB integration
• Gold-plated beryllium copper contacts ensure low resistance and durability
• High voltage rating capability for specialized power applications
• Glass-filled polyester insulation provides thermal stability

Applications

• Automotive electronic systems
• General purpose industrial interconnects
• Military grade equipment connections

Procurement Notes

Verify the specific contact finish variant, as datasheets may list tin-lead or gold options for similar part numbers. Confirm that the vertical PC tail orientation matches the design requirements. Ensure compatibility with mating pins from the same Datamate L-Tek family. Check for any RoHS compliance updates if environmental regulations apply to the final assembly.

Selection Notes

Select this component when a vertical, single-row connection is required for space-constrained designs. The 2.00mm pitch allows for dense packing while maintaining electrical isolation. Consider the 800V rating if operating in high-voltage circuits. Verify that the crimp or solder termination method aligns with the manufacturing process. Ensure the housing material meets the thermal requirements of the application environment.

Part Context

This part belongs to the Datamate L-Tek family, known for its compact form factor and high reliability. The M80 series is widely used in harsh environments due to its robust construction. As a vertical receptacle, it facilitates easy wiring access and panel mounting. The design emphasizes mechanical strength and consistent electrical performance across varying conditions.

Replacement Considerations

M80-8940701

FAQ

What is the maximum voltage rating for this connector?

The M80-8970701 supports a voltage rating of up to 800V.

What material is used for the contacts?

The contacts are made from beryllium copper to ensure spring properties and conductivity.
