Product Detailed Parameters

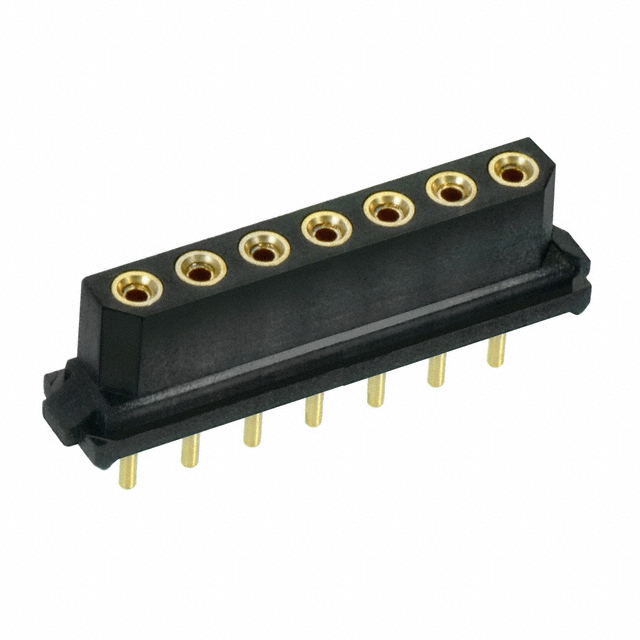

- Description：CONN RCPT 7POS 0.079 GOLD PCB
- Series：Datamate L-Tek
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：7
- Number of Positions Loaded：All
- Pitch - Mating：0.079" (2.00mm)
- Number of Rows：1
- Row Spacing - Mating：-
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：12.0µin (0.30µm)
- Insulation Color：Black
- Insulation Height：0.202" (5.14mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：7.23mm, 7.83mm
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：-
- Voltage Rating：800V
Download product information
Overview
The M80-8970705 is a Datamate L-Tek single-row female vertical connector with 7 positions and a 2.00 mm pitch. It features gold-plated contacts rated for 3 A per contact and 300 V, housed in black thermoplastic. Designed for cable mounting or free hanging, it utilizes crimp termination. The component operates within a temperature range of -55 °C to +125 °C.
Feature Summary
- Datamate L-Tek series construction with gold-plated beryllium copper contacts
- Single-row female receptacle design for cable or free-hanging applications
- Thermoplastic housing providing reliable insulation and environmental protection
Applications
- Power supply units requiring robust interconnects
- Embedded systems needing compact power distribution
- Automotive solutions demanding high-reliability connections
Procurement Notes
Verify the specific datasheet version for the M80-8970705 to confirm exact mating partner compatibility and mechanical dimensions. Ensure that the selected crimping tools match the contact specifications for proper termination. Cross-reference the official Harwin documentation to validate material compliance and environmental ratings before finalizing procurement orders.
Selection Notes
Select this component when a single-row female connector is required for cable-to-board or free-hanging applications. The 2.00 mm pitch and 3 A current rating suit moderate power distribution needs. Verify that the mating male header matches the Datamate L-Tek series specifications to ensure correct alignment and secure connection integrity.
Part Context
This part belongs to the Harwin Datamate M80 series, a modular interconnect system designed for high reliability. The L-Tek variant specifically offers enhanced durability and performance characteristics suitable for demanding industrial environments. It integrates seamlessly with other components in the Datamate ecosystem for scalable board-level power solutions.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation.
