M80-8971705

Overview

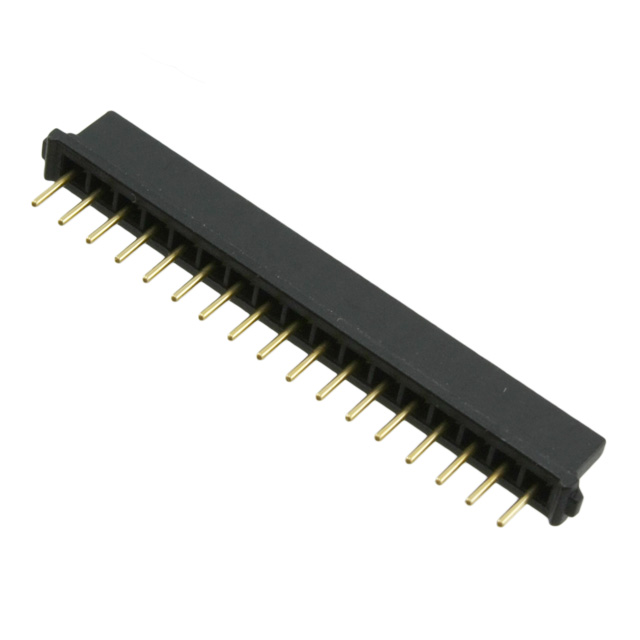

The M80-8971705 is a Datamate L-Tek series power-to-board connector manufactured by Harwin. It features a 17-position single-row female socket configuration with a 2mm pitch. Designed for cable mounting, the unit utilizes crimp termination and gold-plated beryllium copper contacts. The component supports a current rating of 3A per contact and a voltage rating of 800V. Operating within a temperature range of -55°C to +125°C, it employs a thermoplastic housing.

Feature Summary

• High-reliability four-finger beryllium copper contacts ensure secure connection under extreme vibration and shock.
• Full enclosure design protects internal contacts from environmental contaminants.
• Polarization features prevent misalignment during mating procedures.

Applications

• Military systems requiring high reliability
• Aviation and aerospace equipment
• General purpose industrial applications

Procurement Notes

Verify the specific datasheet version before procurement, as specifications may vary between revisions. Confirm that the 800V rating aligns with your system requirements rather than standard lower-voltage assumptions. Ensure compatibility with the required crimping tools for the specified wire gauge. Check for any recent product change notifications regarding material composition or packaging updates.

Selection Notes

Select this component when a robust, high-voltage interconnect solution is needed for harsh environments. The 17-position count suits applications requiring multiple power or signal lines in a compact footprint. Consider the 2mm pitch for space-constrained designs. Verify that the free-hanging installation style meets the mechanical constraints of the target assembly compared to panel mount alternatives.

Part Context

This part belongs to the Datamate L-Tek family, which is engineered for safety-critical applications. The series is known for durability and resistance to high acceleration forces. It serves as a key interconnect solution in sectors where connection failure is not an option, such as defense and medical devices. The M80 prefix indicates its classification within Harwin's broader connector portfolio.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. For equivalent functionality, consider other models within the Datamate L-Tek series that match the 17-position count and 2mm pitch. Ensure any alternative maintains the same voltage rating and contact material specifications.

FAQ

What is the voltage rating for the M80-8971705?

The component has a voltage rating of 800V.

What type of termination does this connector use?

It uses crimp termination for the contacts.

Is this connector suitable for high-vibration environments?

Yes, the four-finger contact design ensures stability under high vibration and shock conditions.
