M80-MH313M5-06

Overview

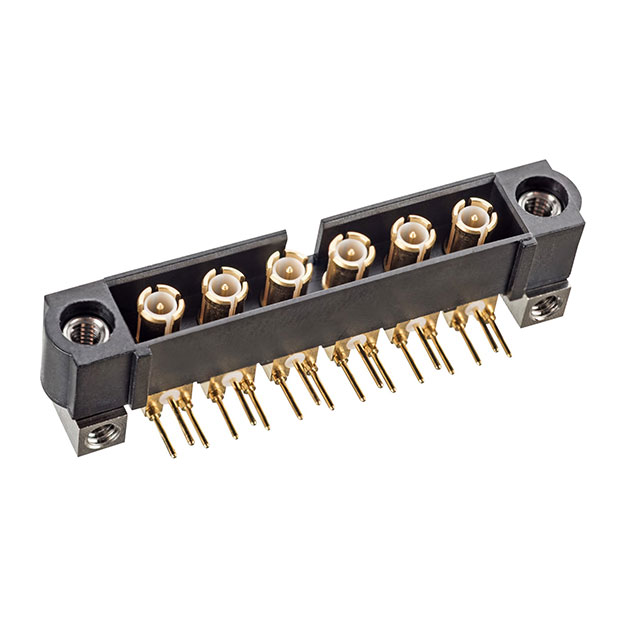

The Harwin M80-MH313M5-06 is a Datamate Coax male connector designed for power-to-board applications. It features a horizontal orientation with six positions, each accommodating a 3.0 mm coaxial contact. The connector utilizes a 4.00 mm pitch and supports frequencies up to 6 GHz with a 50 Ohm impedance. It employs through-hole right-angle mounting and includes jackscrews for secure attachment.

Feature Summary

• Supports high-frequency signal transmission up to 6 GHz
• Integrates coaxial contacts within a mixed-signal housing
• Provides mechanical stability via reverse-fix hex socket jackscrews

Applications

• High-speed data transmission in compact electronic modules
• RF interconnections requiring low insertion loss
• Mixed-signal board-to-board or cable-to-board connections

Procurement Notes

Verify the specific ordering suffix to confirm the inclusion of jackscrews and the exact coaxial contact type. Ensure the selected variant matches the required 6 GHz frequency performance and 50 Ohm impedance specifications for the intended application environment.

Selection Notes

Select this component when high-frequency coaxial signals must be integrated alongside standard power or signal contacts in a limited space. The right-angle through-hole design facilitates dense PCB layouts while maintaining reliable mechanical locking through the jack screw mechanism.

Part Context

This part belongs to the Datamate M80 series, which offers high-reliability interconnect solutions. The Mix-Tek and Coax variants allow designers to combine different contact types within a single connector system, optimizing board real estate and simplifying assembly processes for complex electronic systems.

Replacement Considerations

No public confirmed substitute part numbers are available.
