M80-MH313M5-08

Overview

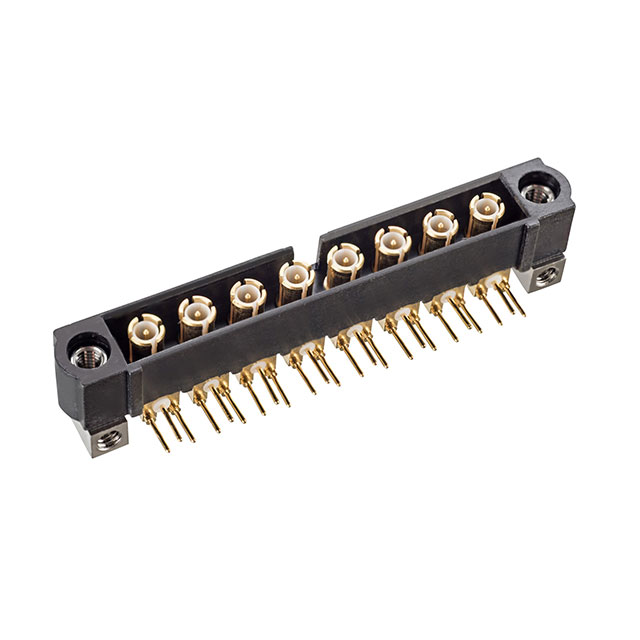

The M80-MH313M5-08 is a coaxial header connector from Harwin's Datamate L-Tek series. It features an 8-position configuration with male pin contacts designed for high-frequency applications up to 6 GHz. The unit utilizes 50 Ohm impedance and supports 3.0 mm coaxial cable connections. Key electrical parameters include a rated current of 3 A and an operating temperature range of -55°C to +125°C. The housing is constructed from black polyphenylene sulfide (PPS) with UL 94 V-0 flammability rating. Mechanical specifications include a right-angle through-hole mounting style, a 4.00 mm pitch, and threaded fastening type.

Feature Summary

• Engineered for high-frequency signal integrity with 6 GHz bandwidth capability
• Utilizes 50 Ohm coaxial design for consistent impedance matching
• Incorporates threaded fastening mechanism for secure mechanical retention
• Constructed with high-performance PPS housing material

Applications

• High-speed data transmission systems
• RF and microwave interconnects
• Test and measurement equipment
• Telecommunications infrastructure

Procurement Notes

Verify the specific ordering suffix to ensure compatibility with required coaxial cable types and mating hardware. Confirm that the threaded fastening requirement aligns with the system design constraints. Check RoHS compliance documentation for regulatory adherence in restricted substance environments. Ensure the right-angle orientation fits within the available spatial envelope of the assembly.

Selection Notes

Select this component when high-frequency performance above 1 GHz is required alongside robust mechanical locking. The 50 Ohm characteristic impedance makes it suitable for RF applications where signal reflection must be minimized. Consider the right-angle form factor for space-constrained PCB layouts requiring directional cable exit. Verify that the 3.0 mm coaxial cable diameter matches the selected cable inventory.

Part Context

This part belongs to the Datamate L-Tek family, which is characterized by its modular design and high-reliability standards. The M80 prefix indicates a specific series within the broader Datamate ecosystem. It complements other connectors in the line by offering specialized coaxial solutions for demanding electronic environments requiring both electrical precision and mechanical durability.

Replacement Considerations

No direct public substitute part numbers are confirmed for this specific coaxial variant.
