Product Detailed Parameters

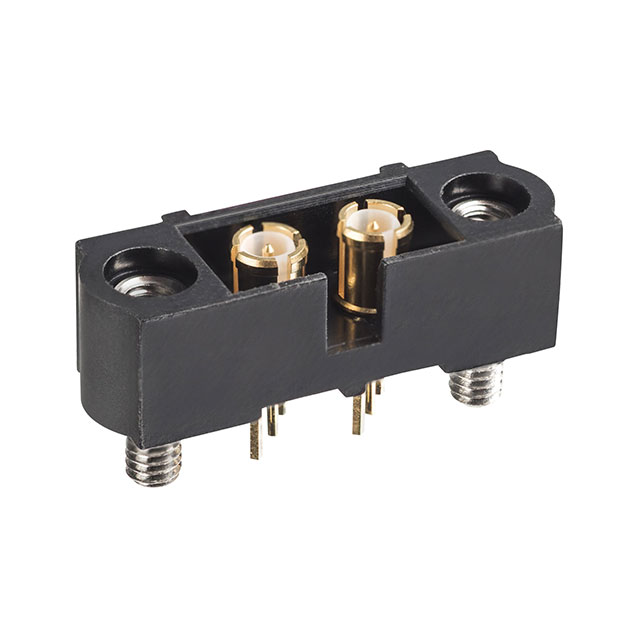

- Description：CONN HEADER VERT 2POS 4MM
- Series：Datamate Coax
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin, Coaxial
- Pitch - Mating：0.157" (4.00mm)
- Number of Positions：2 (Coax)
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.177" (4.50mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：-
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Mating Flange, Mounting Flange
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
