M80-MV311M2-06

$82.58

Description：CONN HEADER VERT 6POS 4MM
Series：Datamate Coax
Mfr：Harwin Inc.
Package：Tube

SKU:989c3fbed005 Category: Headers, Male Pins Brand: Harwin Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 6POS 4MM
Series：Datamate Coax
Mfr：Harwin Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin, Coaxial
Pitch - Mating：0.157" (4.00mm)
Number of Positions：6 (Coax)
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Threaded
Contact Length - Mating：-
Contact Length - Post：0.177" (4.50mm)
Overall Contact Length：-
Insulation Height：0.220" (5.60mm)
Contact Shape：Circular
Contact Finish - Mating：-
Contact Finish Thickness - Mating：-
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
Features：Mating Flange, Mounting Flange
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Download product information

M80-MV311M2-06

Overview

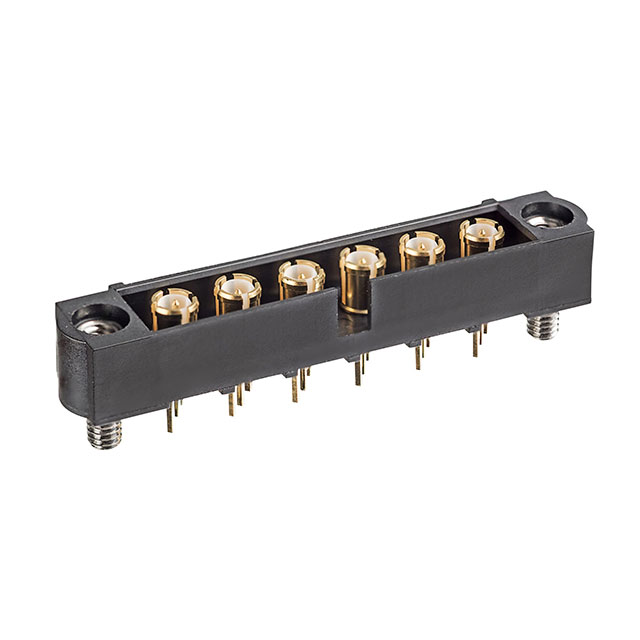

The M80-MV311M2-06 is a Datamate Coax male assembly connector manufactured by Harwin. It features a vertical PCB mount configuration with six positions and supports frequencies up to 6 GHz at 50 Ohms. The unit includes internally threaded jackscrews and 3.5 mm board mount studs for secure attachment. Contact areas utilize gold finish, while the housing is black polyphenylene sulfide (PPS). Operating temperature ranges from -55°C to +125°C, with an insulation resistance of 100 MOhms.

Feature Summary

Designed to resist extremes of shock, vibration, and temperature in challenging environments
Polarized coaxial design ensures correct mating alignment
Integrated internally threaded jackscrews provide mechanical retention

Applications

High-frequency signal transmission systems
Telecommunications equipment requiring 6 GHz bandwidth
Industrial control units exposed to vibration
Aerospace electronic assemblies

Procurement Notes

Verify that the specific order matches the M80-MV311M2-06 designation for the 6-position variant. Confirm compatibility with slotted nut M80-2130000B or hexagonal nut M80-2430000B for board retention. Ensure application requirements align with the 6 GHz frequency limit and 50 Ohm impedance specifications before procurement.

Selection Notes

Select this component when high-frequency performance up to 6 GHz is required alongside robust mechanical stability. The integrated jackscrew system eliminates the need for separate locking hardware during standard installation. Verify that the vertical mounting style fits within the available spatial constraints of the target circuit board layout.

Part Context

This part belongs to the Harwin Datamate Coax series, engineered for demanding applications. It complements other Datamate connectors by providing specialized RF capabilities. The series maintains consistent mechanical dimensions while offering varied contact configurations for different signal types.
