Product Detailed Parameters

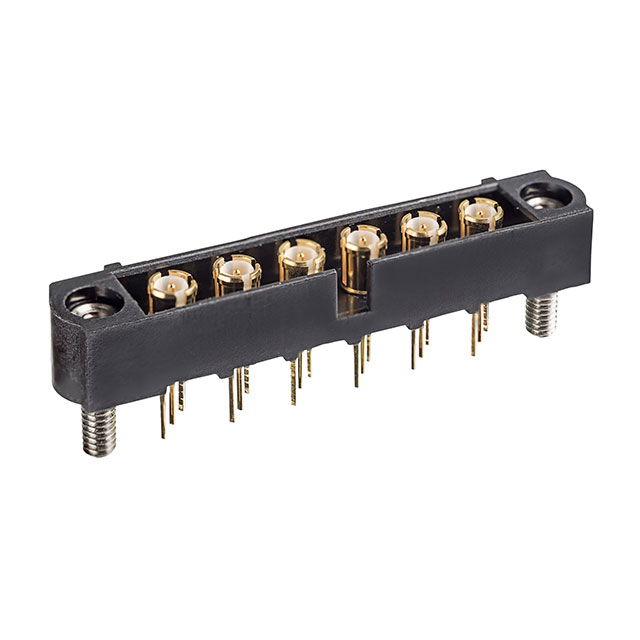

- Description：CONN HEADER VERT 6POS 4MM
- Series：Datamate Coax
- Mfr：Harwin Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin, Coaxial
- Pitch - Mating：0.157" (4.00mm)
- Number of Positions：6 (Coax)
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Board or Cable
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Threaded
- Contact Length - Mating：-
- Contact Length - Post：0.177" (4.50mm)
- Overall Contact Length：-
- Insulation Height：0.220" (5.60mm)
- Contact Shape：Circular
- Contact Finish - Mating：-
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Polyphenylene Sulfide (PPS), Glass Filled
- Features：Mating Flange, Mounting Flange
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Download product information
Overview
The Harwin M80-MV312M3-06 is a Datamate Mix-Tek male header designed for power-to-the-board applications. It features a 2-row configuration with 12 positions and a 2 mm pitch. The connector utilizes brass contacts with gold plating housed in a black PPS insulator. Rated for 3 A current and 120 V, it supports surface mount installation via solder termination. Operating temperatures range from -55 °C to +125 °C, with an insulation resistance of 100 MOhms.
Feature Summary
- Datamate Mix-Tek series design for mixed signal and power integration
- Surface mount construction for automated PCB assembly
- Gold-plated brass contacts ensuring reliable conductivity
- High-temperature resistant PPS housing material
Applications
- Industrial control systems requiring robust interconnects
- Medical equipment with strict reliability standards
- Automotive electronics and electric vehicle components
- Aerospace and defense instrumentation
Procurement Notes
Verify the specific suffix codes against official Harwin documentation to confirm exact pin count, contact plating thickness, and mounting style variations. Ensure compatibility with mating female connectors within the same Datamate Mix-Tek family. Confirm RoHS compliance status and lead-free soldering requirements prior to procurement.
Selection Notes
Select this component for applications demanding high-density power delivery alongside signal transmission. The 2 mm pitch allows for compact board layouts while maintaining adequate spacing for voltage isolation. Consider the SMT mounting profile for manufacturing efficiency and mechanical stability in vibration-prone environments.
Part Context
This part belongs to the Datamate Mix-Tek product line by Harwin, engineered for harsh environment durability. The series combines power and signal capabilities in a single interconnect solution, suitable for space-constrained designs in industrial, medical, and transportation sectors where reliability is critical.
Replacement Considerations
Consult official Harwin substitution guides for verified equivalents. Cross-reference mating connector specifications to ensure mechanical and electrical compatibility before implementing any alternative parts.
