Product Detailed Parameters
- Description：CONN RCPT 18POS 0.079 GOLD PCB
- Series：Datamate J-Tek
- Mfr：Harwin Inc.
- Package：Tray
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：18
- Number of Positions Loaded：All
- Pitch - Mating：0.079" (2.00mm)
- Number of Rows：3
- Row Spacing - Mating：0.079" (2.00mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Screw Lock
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：12.0µin (0.30µm)
- Insulation Color：Black
- Insulation Height：0.330" (8.38mm)
- Contact Length - Post：0.118" (3.00mm)
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：UL94 V-0
- Contact Finish - Post：Gold
- Mated Stacking Heights：10.65mm
- Ingress Protection：-
- Features：Jackscrews, Mating Flange, Mounting Flange
- Current Rating (Amps)：-
- Voltage Rating：120V
Download product information
Overview

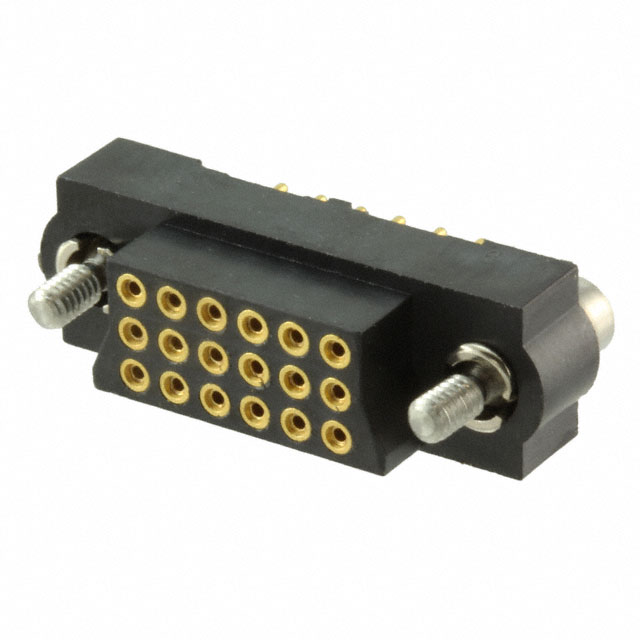

The Harwin M83-LFT1F2N18-0000-000 is a Datamate J-Tek series receptacle connector featuring an 18-position female configuration. It utilizes a 2.00 mm pitch and supports 22 AWG wire termination via crimp contacts with gold plating. The component operates within a temperature range of -55°C to +125°C and carries a current rating of 3 A.
Feature Summary
- Datamate J-Tek high-reliability interconnect system
- Crimp termination for secure wire attachment
- Gold-plated contacts for corrosion resistance
Applications
- Industrial control systems
- Test and measurement equipment
- Automotive electronics
Procurement Notes
Verify the specific part number against official Harwin documentation to ensure compatibility with mating headers and jackscrew requirements. Confirm that the cable assembly specifications match the intended application environment, particularly regarding the 22 AWG wire gauge and operating temperature limits.
Selection Notes
Select this component when a robust, shrouded 3-row connector is required for space-constrained designs. Ensure the mating header uses compatible hexagonal slotted jackscrews for secure locking. Validate that the 3 A current rating and 120 V voltage limit meet the circuit requirements.
Part Context
This connector belongs to the Datamate J-Tek family, designed for high-density applications requiring reliable performance in harsh environments. The series offers various row counts and termination styles to support diverse board-to-wire and cable assembly needs.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-reference with other Harwin Datamate J-Tek variants only if they share identical pin counts, pitch, and termination methods.
