M83-LFT1F2N27-0000-000

Overview

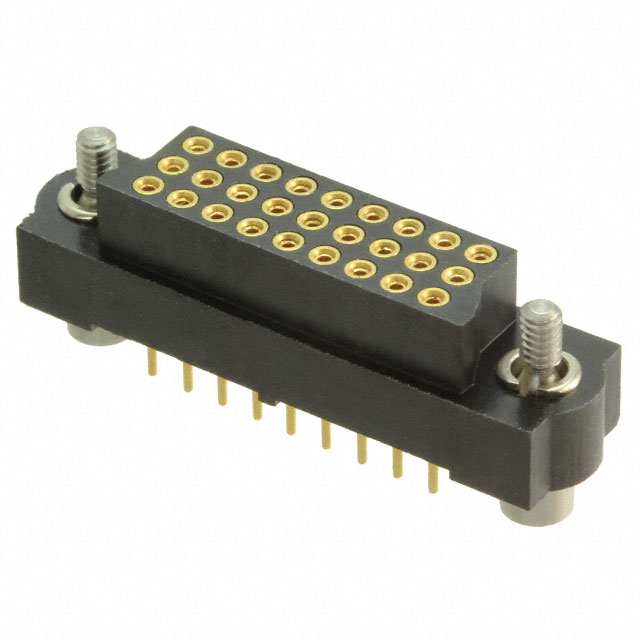

The Harwin M83-LFT1F2N27-0000-000 is a Datamate J-Tek series header and wire housing designed for high-reliability applications. It features a 27-position female receptacle configuration with a 2.00 mm (0.079 inch) pitch across three rows. The connector utilizes crimp termination for 24-28 AWG wires and includes hexagonal slotted jackscrews for secure mating. Rated for 3 A current and 120 V voltage, it operates within a temperature range of -55°C to +125°C. The contacts are gold-plated phosphor bronze, housed in black polyamide, ensuring robust performance in demanding environments.

Feature Summary

• Three-row female receptacle design with integrated jackscrews for positive locking
• Crimp termination compatible with 24-28 AWG wire gauges
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance
• High-temperature polyamide housing supports operation up to +125°C

Applications

• Industrial control systems requiring secure cable connections
• Test and measurement equipment interfaces
• Automotive electronics harnesses
• Medical device internal wiring
• Aerospace communication modules

Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and jackstyle type. Ensure compatibility with corresponding Datamate male headers before procurement. Confirm that the 24-28 AWG wire gauge matches your assembly requirements. Check for RoHS compliance status if required by your project specifications. Validate pin count alignment with circuit board layout constraints.

Selection Notes

Select this component when a multi-row, high-density connection is necessary. The jackscrew mechanism provides superior vibration resistance compared to standard latches. Consider the 2.00 mm pitch for space-constrained PCB layouts. Evaluate the 3 A current rating against peak load requirements. Ensure the crimp tooling matches the specified contact size for proper termination.

Part Context

This part belongs to the Datamate J-Tek family, known for its modular design and high reliability. It complements other Harwin connectors like the M80 series but offers distinct jackscrew locking. The J-Tek line is widely used in sectors demanding rigorous environmental stability. This specific model represents a standard configuration within the broader Datamate ecosystem.

Replacement Considerations

No direct public substitute part numbers are confirmed for this exact specification. Cross-reference with other Harwin Datamate J-Tek variants only if pin count and row configuration match. Verify mechanical dimensions and electrical ratings before considering alternative suppliers. Generic equivalents may not support the jackscrew locking mechanism.
